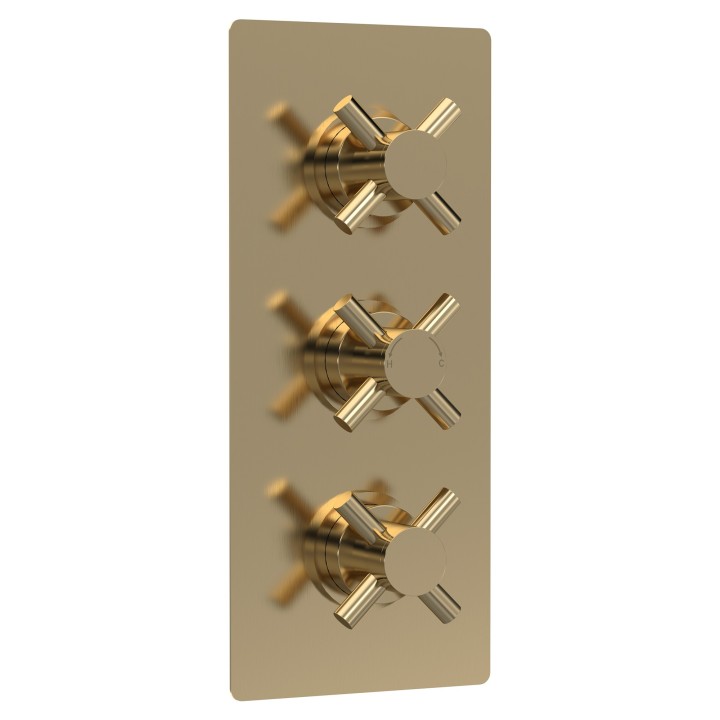

Tec Crosshead Brushed Brass Triple Thermostatic Shower Valve
NWT10421
local_shipping
Order now for FREE delivery between Monday, 30th December - Friday, 3rd January due to the Bank Holiday.
Data sheet
- Outer Finish
- Brushed Brass

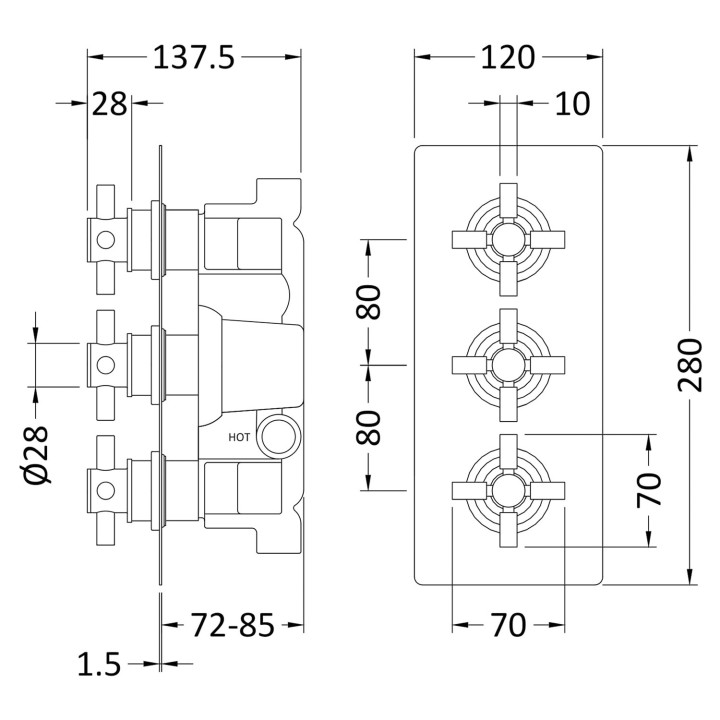

- Height (mm)
- 280mm
- Width (mm)
- 120mm
- Depth (mm)
- 136mm
- Design
- Tec Crosshead
- Colour Family
- Brass
- Guarantee
- 3 Years
- Made In UK
- Yes
- Operating Pressure
- 0.1
- WRAS Approved
- Yes
- WRAS Approval Number
- 1703023
- TMV2 Approved
- Yes
- TMV2 Approval Number
- Bc 1875 00817
- TMV3 Approval Number
- Nsf 1938 1217
- TMV3 Approved
- Yes
- Weight
- 5.88 KG
- Valve/Cartridge Type
- 1/4 Turn
- Flow Rate - 0.1 Bar
- 5.5
- Flow Rate - 0.5 Bar
- 14
- Flow Rate - 1 Bar
- 20
- Flow Rate - 2 Bar
- 29
- Flow Rate - 3 Bar
- 44
- Range
- Tec Crosshead
- Brand
- Hudson Reed
- Minimalist sleek design
- Can be fitted vertically or horizontally
- Accurate flow control
- Thermostatic control to +/- 2 to 3 °C even if the water pressure fluctuates
- In the event of hot or cold water failure, the valve will shut down the water supply providing full thermal protection and prevents scalding
- The unique cartridge is highly resistant to calcium build up - even in hard water areas
- Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
- Excellent flow rates - even at low pressure
- The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
- Simply remove the cartridge turn 180° and replace
- Manufactured from high quality brass & ABS
