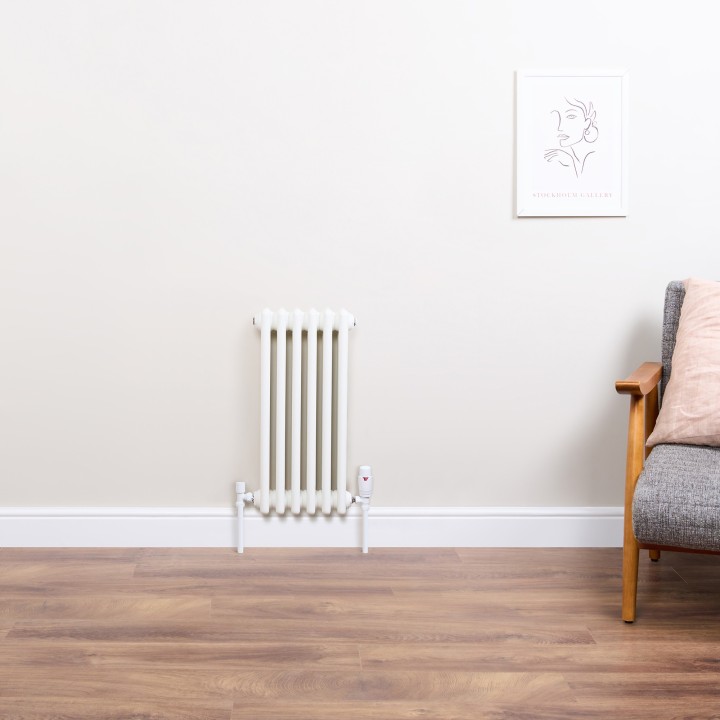

Ultraheat "Tubularo" 3 Column White Horizontal Radiators (43 Sizes)

NWT1967-41376
C3060306W
star star star star star
  • In Stock
  • Btus: 1356 - 11190
  • 397 - 3276 Watts
"Korona" 3 Column White Horizontal Radiators (18 Sizes)
search
  • "Korona" 3 Column White Horizontal Radiators (18 Sizes)
  • "Korona" 3 Column White Horizontal Radiators (18 Sizes)
  • "Korona" 3 Column White Horizontal Radiators (18 Sizes)
  • "Korona" 3 Column White Horizontal Radiators (18 Sizes)
  • "Korona" 3 Column White Horizontal Radiators (18 Sizes)
arrow_upward arrow_downward

Our range of Tubularo 3 Column Radiators are a classic statement piece of designer heating. They make a feature of any roomset while providing impressive heat outputs. We have a variety of sizes to suit a variety of installation requirements.

Radiator Height
Ultraheat Rad Width
£113.00
VAT included
5% Checkout Discount on 3 or more Ultraheat Radiators or Towel Rails
local_shipping Order now for FREE delivery between Wednesday, 1st June - Thursday, 2nd June
On display in the showroom. This product is available to view in our Conwy based showroom.

Data sheet

Height (mm)
300mm, 400mm, 500mm, 600mm, 750mm
Width (mm)
288mm, 377mm, 421mm, 598mm, 731mm, 864mm, 997mm, 1130mm, 1440mm, 1617mm, 1794mm
Depth (mm)
100mm
Outer Finish
White Powder Coating
Material
Mild Steel
Design
Tubularo
Output BTUs
1356, 1380, 1807, 1824, 1865, 1995, 2001, 2297, 2452, 2487, 2635, 2797, 2891, 2914, 3023, 3156, 3243, 3558, 3832, 3832, 3851, 3869, 4041, 4225, 4353, 4584, 4905, 4973, 5067, 5520, 5559, 5738, 5906, 6486, 6838, 6968, 7115, 7296, 7770, 8005, 8334, 9946, 11190
Output Watts
397, 404, 529, 534, 546, 584, 586, 673, 718, 728, 771, 819, 846, 853, 885, 924, 949, 1042, 1122, 1122, 1127, 1133, 1183, 1237, 1274, 1342, 1436, 1456, 1483, 1616, 1628, 1680, 1729, 1899, 2002, 2040, 2083, 2136, 2275, 2344, 2440, 2912, 3276
Tube Bar Pattern
9, 13, 16, 19, 25, 32 or 36 Sections (See Widths)
Fixing Kit
Wall Fixing Kit Included
Accessories
Blank and Bleed valve (NOTE: Feet not Included)
Guarantee
5 Year Guarantee
Projection
128mm
Pipe Centres
Width plus valve widths
Socket Width
1/2" BSP
Fuel Type
Central Heating
Brand
Ultraheat Ultraheat

Downloads

Our range of Tubularo 3 Column Radiators are a classic statement piece of designer heating. They make a feature of any roomset while providing impressive heat outputs. We have a variety of sizes to suit a variety of installation requirements. NOTE: Due to the weight of the Tubularo radiators we recommend you install them onto solid walls or purchase the Slip on Feet (Pair) supports as an addition.

3 Column RAL 9010 Max Working Pressure: 10 Bar 5 Year Guarantee
Product Code Height Length Depth Pipe Centers Wall to Face BTU's Watt's
C3030919 300 864 100 954 128 2297 673
C3031125 300 1130 100 1220 128 3023 885
C3031432 300 1440 100 1530 128 3869 1133
C3031636 300 1617 100 1707 128 4353 1274
C3040409 400 421 100 511 128 1380 404
C3040613 400 598 100 688 128 1995 584
C3040716 400 731 100 821 128 2452 718
C3040919 400 864 100 954 128 2914 853
C3040922 400 997 100 1087 128 3156 924
C3041125 400 1130 100 1220 128 3832 1122
C3041432 400 1440 100 1530 128 4905 1436
C3041636 400 1617 100 1707 128 5520 1616
C3041640 400 1794 100 1884 128 5738 1680
C3050409 500 421 100 511 128 1824 534
C3050613 500 598 100 688 128 2635 771
C3050716 500 731 100 821 128 3243 949
C3050919 500 864 100 954 128 3851 1127
C3050922 500 997 100 1087 128 3832 1122
C3051125 500 1130 100 1220 128 5067 1483
C3051432 500 1440 100 1530 128 6486 1899
C3051636 500 1617 100 1707 128 7296 2136
C3051640 500 1794 100 1884 128 6968 2040
C3060306 600 288 100 378 128 1356 397
C3060408 600 377 100 467 128 1807 529
C3060409 600 421 100 511 128 2001 586
C3060613 600 598 100 688 128 2891 846
C3060716 600 731 100 821 128 3558 1042
C3060919 600 864 100 954 128 4225 1237
C3060922 600 997 100 1087 128 4584 1342
C3061125 600 1130 100 1220 128 5559 1628
C3061432 600 1440 100 1530 128 7115 2083
C3061636 600 1617 100 1707 128 8005 2344
C3061640 600 1794 100 1884 128 8334 2440
C3060306 750 288 100 378 128 1865 546
C3060408 750 377 100 467 128 2487 728
C3060409 750 421 100 511 128 2797 819
C3060613 750 598 100 688 128 4041 1183
C3060716 750 731 100 821 128 4973 1456
C3060919 750 864 100 954 128 5906 1729
C3060922 750 997 100 1087 128 6838 2002
C3061125 750 1130 100 1220 128 7770 2275
C3061432 750 1440 100 1530 128 9946 2912
C3061636 750 1617 100 1707 128 11190 3276
  • Vertical columns (each one with three sections deep)
  • A choice of 27 horizontal models to suit your needs.
  • High quality white powder coat finish (RAL 9010)
  • 5 year warranty
  • Built to last: 1.5mm thick mild steel for guaranteed quality
  • Tested to BS EN 442 Standards
  • ISO9001:2008 Registered Manufacturer
  • CE Marked

This is just a guide for reference only, rooms may require more than one radiator. If this applies to you, divide the required output between the number of radiators required. All figures given are for Delta T 50°
