Ultraheat "Tubularo" 3 Column Anthracite Vertical & Horizontal Radiators (20 Sizes)

NWT8313-47580
C3040613A
  • In Stock
  • Btus: 1865 - 7948
  • 547 - 2329 Watts
Ultraheat "Tubularo" 3 Column Anthracite Vertical & Horizontal Radiators (20 Sizes)
search
  • Ultraheat "Tubularo" 3 Column Anthracite Vertical & Horizontal Radiators (20 Sizes)
  • C3051125A
  • C3180510A
  • C3040613A

Our range of Tubularo 2 Column Radiators are a classic statement piece of designer heating. They make a feature of any roomset while providing impressive heat outputs. We have a variety of sizes to suit a variety of installation requirements.

Radiator Height
Ultraheat Rad Width
£230.00
VAT included
local_shipping If you order before 2pm your order will be delivered FREE between Wednesday, 29th June - Thursday, 30th June

Data sheet

Height (mm)
400mm, 500mm, 600mm, 900mm, 1800mm
Width (mm)
288mm, 377mm, 465mm, 598mm, 731mm, 864mm, 997mm, 1130mm, 1440mm
Depth (mm)
100
Outer Finish
Anthracite Powder Coating
Material
Mild Steel
Design
Tubularo
Output BTUs
1865, 2295, 2709, 2726, 3156, 3310, 3334, 3586, 3668, 3832, 3959, 4355, 4584, 4591, 4891, 5209, 5574, 6114, 6667, 7948
Output Watts
547, 673, 794, 799, 925, 970, 977, 1051, 1075, 1123, 1160, 1276, 1343, 1345, 1433, 1527, 1634, 1792, 1954, 2329
Fixing Kit
Wall Fixing Kit Included
Accessories
Blank and Bleed valve (NOTE: Feet not Included)
Guarantee
5 Year Guarantee
Projection
128
Pipe Centres
Width of radiator + Valve Widths
Socket Width
1/2" BSP
Fuel Type
Central Heating
Brand
Ultraheat Ultraheat

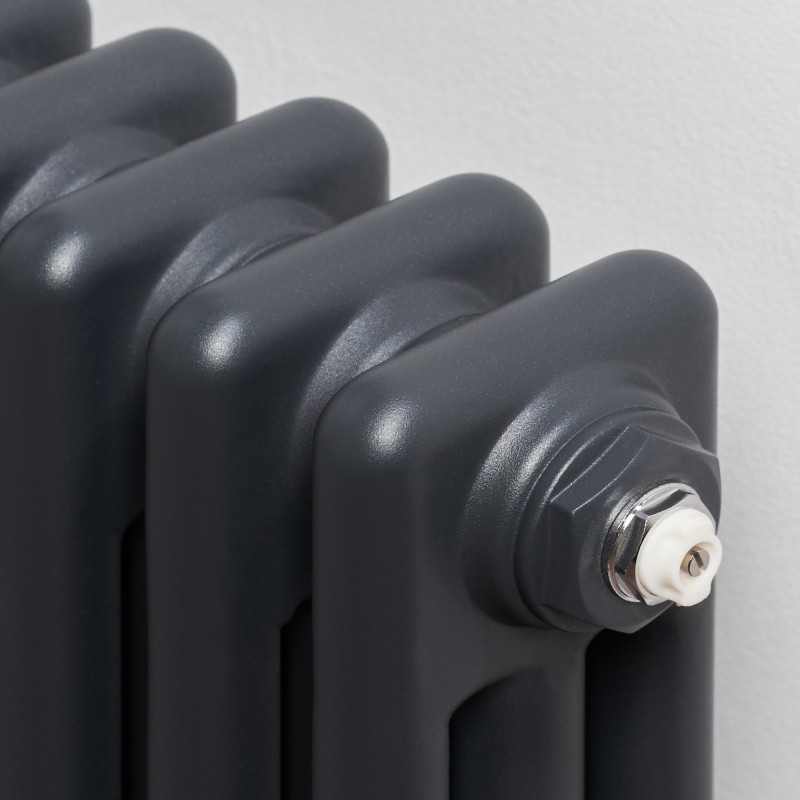

Our range of Tubularo 3 Column Radiators are a classic statement piece of designer heating. They make a feature of any roomset while providing impressive heat outputs. We have a variety of sizes to suit a variety of installation requirements.

NOTE: Due to the weight of the Tubularo radiators we recommend you install them onto solid walls or purchase the Slip on Feet (Pair) supports as an addition.

2 Column Max Working Pressure: 10 Bar 5 Year Guarantee
Product Code Height Length Depth Pipe Centre
(inc valve width)
Wall to Face BTU's Watt's
C3040613A 400 598 69 688 128 1865 546
C3040716A 400 731 69 821 128 2295 672
C3040919A 400 864 69 954 128 2726 798
C3040922A 400 997 69 1087 128 3156 924
C3041125A 400 1130 69 1220 128 3586 1050
C3041432A 400 1440 69 1530 128 4591 1344
C305919A 500 864 69 954 128 3310 969
C305922A 500 997 69 1087 128 3832 1122
C3051125A 500 1130 69 1220 128 4355 1275
C3051432A 500 1440 69 1530 128 5574 1632
C3060613A 600 598 69 688 128 2709 793
C3060716A 600 731 69 821 128 3334 976
C3060919A 600 864 69 954 128 3959 1159
C3060922A 600 997 69 1087 128 4584 1342
C3061125A 600 1130 69 1220 128 5209 1525
C3061432A 600 1440 69 1530 128 6667 1952
C3180306A 1800 288 69 378 128 3668 1074
C3180408A 1800 377 69 467 128 4891 1432
C3180510A 1800 465 69 555 128 6114 1790
C3180613A 1800 598 69 688 128 7948 2327
  • Vertical columns (each one with 3 sections deep)
  • A choice of 20 vertical or horizontal models to suit your needs.
  • High quality Anthracite powder coat finish (RAL 9010)
  • 5 year warranty
  • Built to last: 1.5mm thick mild steel for guaranteed quality
  • Tested to BS EN 442 Standards
  • ISO9001:2008 Registered Manufacturer
  • CE Marked

This is just a guide for reference only, rooms may require more than one radiator. If this applies to you, divide the required output between the number of radiators required. All figures given are for Delta T 50°
