Ultraheat "Tubularo" 4 Column White Horizontal Radiators (28 Sizes)

NWT1970-41422
C4060409W
star star star star star
  • In Stock
  • Btus: 2561 - 9137
  • 751 - 2678 Watts
"Korona" 4 Column White Horizontal Radiators (14 Sizes)
search
  • "Korona" 4 Column White Horizontal Radiators (14 Sizes)
  • "Korona" 4 Column White Horizontal Radiators (14 Sizes)
  • "Korona" 4 Column White Horizontal Radiators (14 Sizes)
  • "Korona" 4 Column White Horizontal Radiators (14 Sizes)

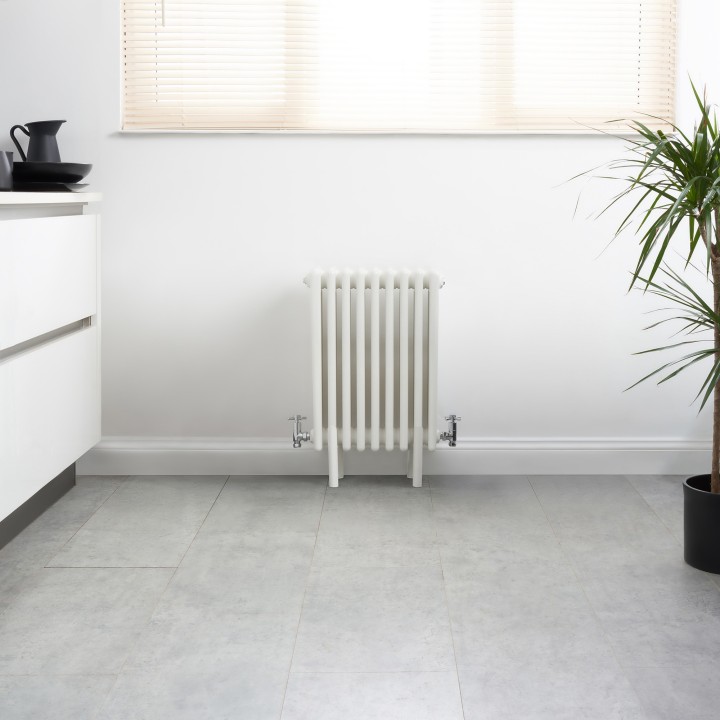

Our range of Tubularo 4 Column Radiators are a classic statement piece of designer heating. They make a feature of any roomset while providing impressive heat outputs. We have a variety of sizes to suit a variety of installation requirements.

Radiator Height
Ultraheat Rad Width
£171.00
VAT included
5% Checkout Discount on 3 or more Ultraheat Radiators or Towel Rails
local_shipping Order now for FREE delivery between Wednesday, 1st June - Thursday, 2nd June

Data sheet

Height (mm)
300mm, 400mm, 500mm, 600mm, 750mm
Width (mm)
421mm, 598mm, 731mm, 864mm, 997mm, 1130mm, 1440mm
Depth (mm)
140mm
Outer Finish
White Powder Coating
Material
Mild Steel
Design
Tubularo
Output BTUs
2561, 2562, 2966, 3149, 3289, 3289, 3386, 3699, 3743, 3902, 4167, 4552, 4751, 4925, 4949, 4995, 5406, 5410, 5848, 6305, 6462, 6512, 6944, 7113, 8040, 8335, 9105, 9137
Output Watts
751, 751, 869, 923, 964, 964, 992, 1084, 1097, 1144, 1221, 1334, 1392, 1443, 1450, 1464, 1584, 1586, 1714, 1848, 1894, 1908, 2035, 2085, 2356, 2443, 2668, 2678
Tube Bar Pattern
9, 13, 16, 19, 25 or 32 Sections (See Widths)
Fixing Kit
Wall Fixing Kit Included
Accessories
Blank and Bleed valve (NOTE: Feet not Included)
Guarantee
5 Year Guarantee
Projection
170mm
Pipe Centres
Width plus valve widths
Socket Width
1/2" BSP
Fuel Type
Central Heating
Brand
Ultraheat Ultraheat

Downloads

Our range of Tubularo 4 Column Radiators are a classic statement piece of designer heating. They make a feature of any roomset while providing impressive heat outputs. We have a variety of sizes to suit a variety of installation requirements.

NOTE: Due to the weight of the Tubularo radiators we recommend you install them onto solid walls or purchase the Slip on Feet (Pair) supports as an addition.

4 Column RAL 9010 Max Working Pressure: 10 Bar 5 Year Guarantee
Product Code Height Length Depth Pipe Centers BTU's Watt's
C4030919 300 864 140 954 2966 868
C4031125 300 1130 140 1220 3902 1143
C4031432 300 1440 140 1530 4995 1462
C4040613 400 598 140 688 2562 750
C4040716 400 731 140 821 3149 922
C4040919 400 864 140 954 3743 1096
C4040922 400 997 140 1087 4358 1276
C4041125 400 1130 140 1220 4925 1442
C4041432 400 1440 140 1530 6305 1846
C4050613 500 598 140 688 3386 991
C4050716 500 731 140 821 4167 1220
C4050919 500 864 140 954 4949 1449
C4050922 500 997 140 1087 5410 1584
C4051125 500 1130 140 1220 6512 1906
C4051432 500 1440 140 530 8335 2440
C4060409 600 421 140 511 2561 750
C4060613 600 598 140 688 3699 1083
C4060716 600 731 140 821 4552 1333
C4060919 600 864 140 954 5406 1583
C4060922 600 997 140 1087 6462 1892
C4061125 600 1130 140 1220 7113 2083
C4061432 600 1440 140 1530 9105 2666
C4060409 750 421 140 511 3289 963
C4060613 750 598 140 688 4751 1391
C4060716 750 731 140 821 5848 1712
C4060919 750 864 140 954 6944 2033
C4060922 750 997 140 1087 8040 2354
C4061125 750 1130 140 1220 9137 2675
  • Vertical columns (each one with four sections deep)
  • A choice of 28 models to suit your needs.
  • High quality white powder coat finish (RAL 9010)
  • 5 year warranty
  • Built to last: 1.5mm thick mild steel for guaranteed quality
  • Tested to BS EN 442 Standards
  • ISO9001:2008 Registered Manufacturer
  • CE Marked

This is just a guide for reference only, rooms may require more than one radiator. If this applies to you, divide the required output between the number of radiators required. All figures given are for Delta T 50°
