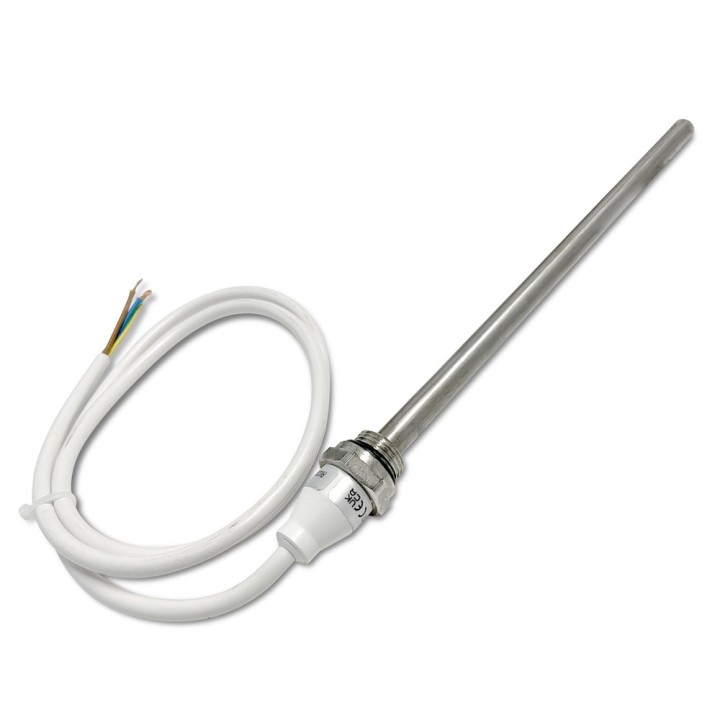

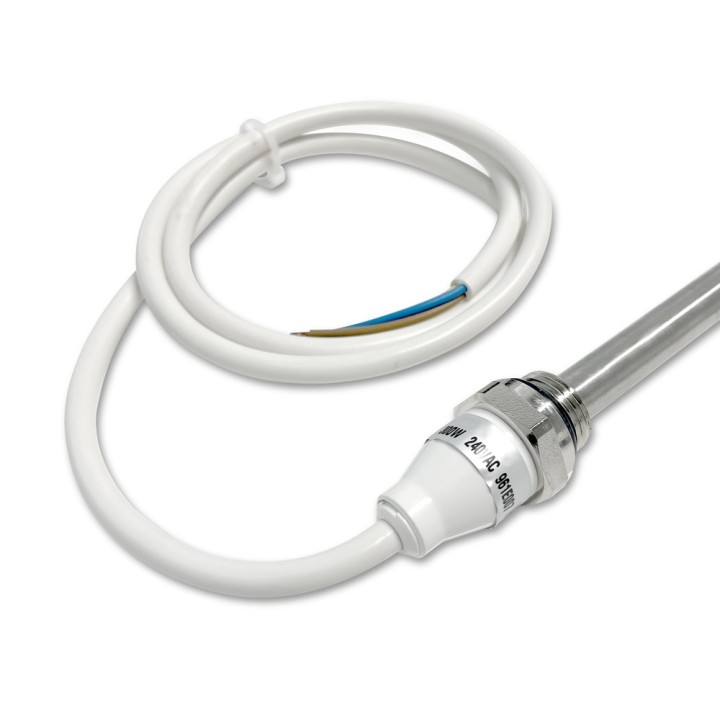

250W RICA Electric Element (PTC Technology) Type 9141
Product Code:
NWT16655
Our 250 Watt PTC electric heating elements are intrinsically safe with self limiting capabilities and are the most efficient standard heating element. They have a maximum operating temperature of 70 degrees. They can never overheat and cut out should the rail or radiator run dry and can be used in both vertical and horizontal applications. The element will run up to its maximum temperature. Once this is achieved it will reduce the wattage consumption to maintain the rail temperature.
Description
Why Buy an Fixed Temperature Electric Heating Element?
"Our 500 Watt PTC electric heating elements are intrinsically safe with self limiting capabilities and are the most efficient standard heating element. They have a maximum operating temperature of 70 degrees. They can never overheat and cut out should the rail or radiator run dry and can be used in both vertical and horizontal applications. The element will run up to its maximum temperature. Once this is achieved it will reduce the wattage consumption to maintain the rail temperature."

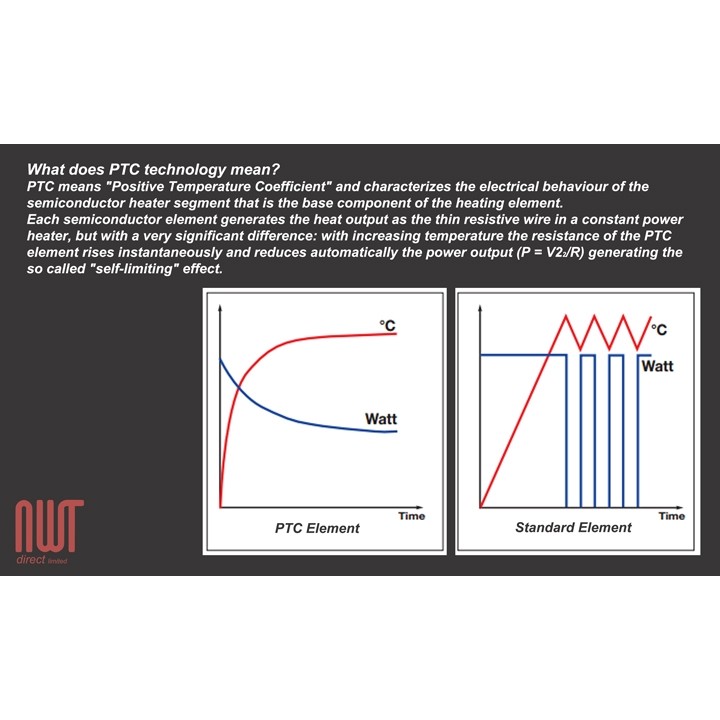

What is PTC technology?
What i need to know?
The electric heating element must always be installed into a radiator of towel rail which has been pre-filled with heating solution. If the element is exposed to air and turned on it will burn out. This misuse is not covered under the manufacturer guarantee.
The element can be installed vertically or horizontally at the bottom of the towel rail or radiator.
We recommend all installation is carried out by a qualified electrician.
The electric element is supplied with a 1 Year manufacturer guarantee.
| Width ↓ / Height → | 800 mm | 1000 mm | 1200 mm | 1400 mm | 1600 mm | 1800 mm |
|---|---|---|---|---|---|---|
| 300 | 100W | 150W | 250W / 300W | 300W | 600W | 600W |
| 400 | 150W | 250W / 300W | 300W | 300W | 600W | 600W |
| 500 | 250W / 300W | 300W | 300W / 400W | 400W / 600W | 600W | 800W |
| 600 | 300W | 400W / 600W | 400W / 600W | 400W / 600W | 800W | 900W |
This table should be used as a guide only.
If you are unsure or would like clarification please contact us and one of our sales team will be more than happy to help.
Product Specifications
Everything you need to know about this product, from dimensions and installation to finish and performance.
Dimensions
Width (mm)
12.5mm
Height (mm)
240mm (+/- 10%)
Socket Width
1/2" BSP
Technical Specifications
Watts
250W
Voltage
220
IP Rating
IP55
Design & Appearance
Design
PTC Technology
Colour Family
White
Certifications & Standards
Guarantee
1 Year
Brand & Product Codes
RICA Heating Elements
