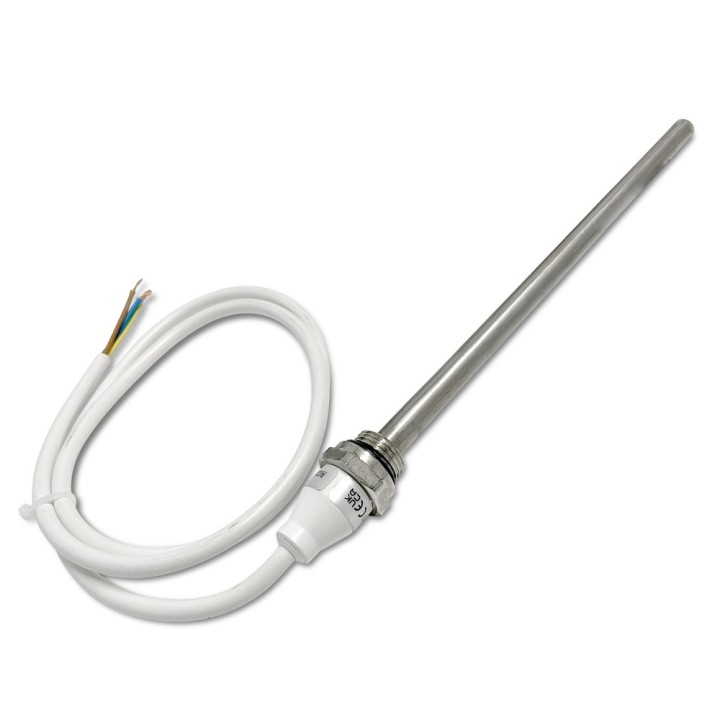

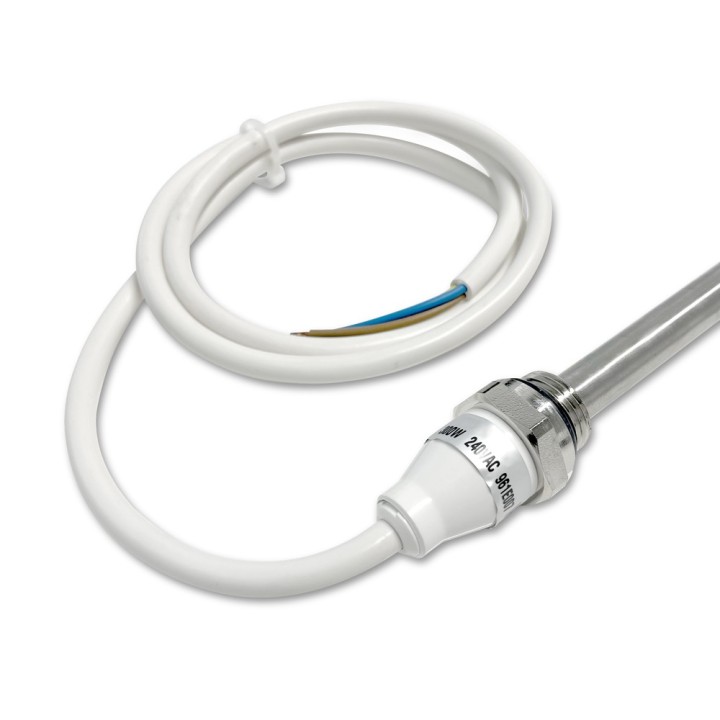

1000W RICA Electric Element (PTC Technology) Type 9141
NWT16659
Our 1000 Watt PTC electric heating elements are intrinsically safe with self limiting capabilities and are the most efficient standard heating element. They have a maximum operating temperature of 70 degrees. They can never overheat and cut out should the rail or radiator run dry and can be used in both vertical and horizontal applications. The element will run up to its maximum temperature. Once this is achieved it will reduce the wattage consumption to maintain the rail temperature.
Data sheet
- Outer Finish
- White
- Height (mm)
- 850mm (+/- 10%)
- Width (mm)
- 12.5mm
- Design
- PTC Technology
- Colour Family
- White
- Guarantee
- 1 Year
- Socket Width
- 1/2" BSP
- Watts
- 1000
- Volts
- 220
- Power Lead Length
- 1.0 Metre
- IP Rating
- IP55
- Brand
- RICA Heating Elements
Why Buy an Fixed Temperature Electric Heating Element?
"Our 900 Watt PTC electric heating elements are intrinsically safe with self limiting capabilities and are the most efficient standard heating element. They have a maximum operating temperature of 70 degrees. They can never overheat and cut out should the rail or radiator run dry and can be used in both vertical and horizontal applications. The element will run up to its maximum temperature. Once this is achieved it will reduce the wattage consumption to maintain the rail temperature."

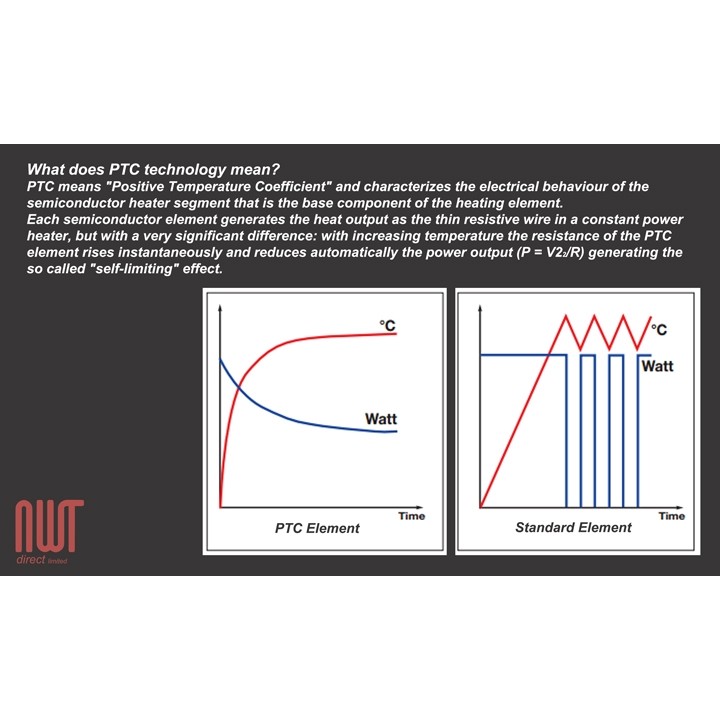

What is PTC technology?
What i need to know?
The electric heating element must always be installed into a radiator of towel rail which has been pre-filled with heating solution. If the element is exposed to air and turned on it will burn out. This misuse is not covered under the manufacturer guarantee.
The element can be installed vertically or horizontally at the bottom of the towel rail or radiator.
We recommend all installation is carried out by a qualified electrician.
The electric element is supplied with a 1 Year manufacturer guarantee.
Recommended Element Size Matrix (Watts) |
|||||||
Approx |
Height(mm) |
800 | 1000 | 1200 | 1400 | 1600 | 1800 |
|
Width (mm) |
|||||||
| 300 | 100W | 150W | 250W/300W | 300W | 600W | 600W | |
| 400 | 150W | 250W/300W | 300W | 300W | 600W | 600W | |
| 500 | 250W/300W | 300W | 300W/400W | 400W/600W | 600W | 800W | |
| 600 | 300W | 400W/600W | 400W/600W | 400W/600W | 800W | 900W | |
This table should be used as a guide only.
If you are unsure or would like clarification please contact us and one of our sales team will be more than happy to help.
