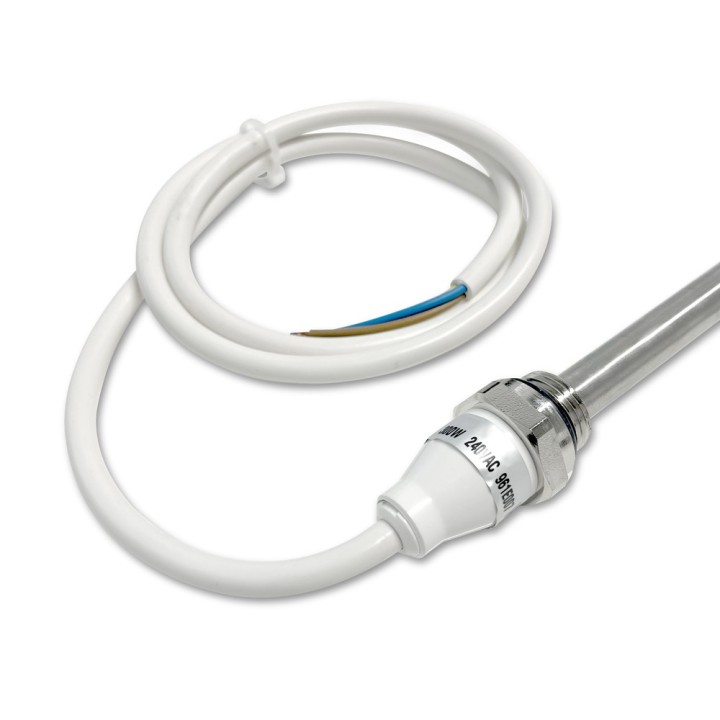

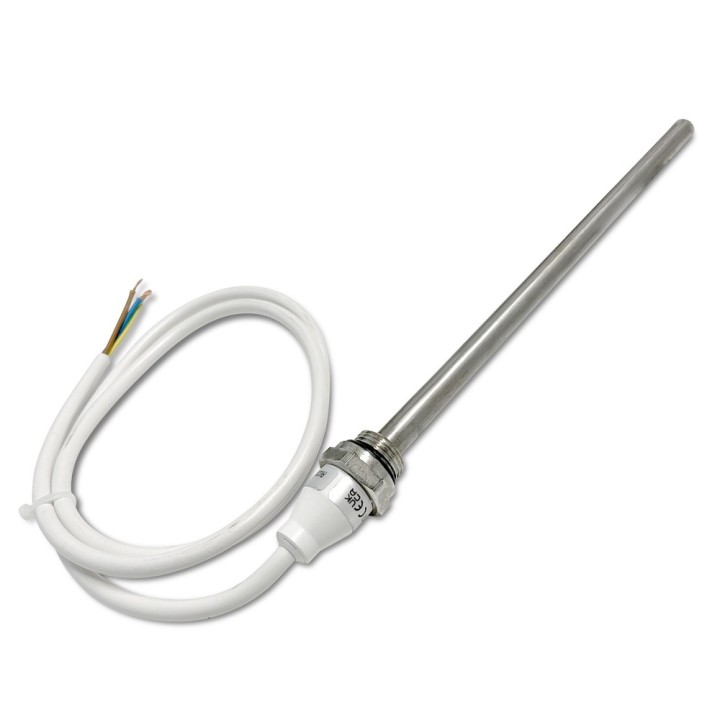

300W RICA Electric Element (PTC Technology) Type 9141

NWT34
300w-ptc-rica
300W RICA Electric Element (PTC Technology) Type 9141
search
  • 300W RICA Electric Element (PTC Technology) Type 9141
  • 300W RICA Electric Element (PTC Technology) Type 9141
  • 300W RICA Electric Element (PTC Technology) Type 9141
  • 300W RICA PTC Electric Element
  • 300W RICA Electric Element (PTC Technology) Type 9141

Our 300 Watt PTC electric heating elements are intrinsically safe with self limiting capabilities and are the most efficient standard heating element. They have a maximum operating temperature of 70 degrees. They can never overheat and cut out should the rail or radiator run dry and can be used in both vertical and horizontal applications. The element will run up to its maximum temperature. Once this is achieved it will reduce the wattage consumption to maintain the rail temperature.

£31.00
VAT included
local_shipping Order now for FREE delivery on Tuesday, 25th June

Data sheet

Outer Finish
White
Height (mm)
260mm (+/- 10%)
Width (mm)
12.5mm
Design
PTC Technology
Colour Family
White
Guarantee
1 Year
Socket Width
1/2" BSP
Watts
300
Volts
220
Power Lead Length
1.0 Metre
IP Rating
IP55
Brand
RICA Heating Elements RICA Heating Elements

Why Buy an Fixed Temperature Electric Heating Element?

"Our 500 Watt PTC electric heating elements are intrinsically safe with self limiting capabilities and are the most efficient standard heating element. They have a maximum operating temperature of 70 degrees. They can never overheat and cut out should the rail or radiator run dry and can be used in both vertical and horizontal applications. The element will run up to its maximum temperature. Once this is achieved it will reduce the wattage consumption to maintain the rail temperature."

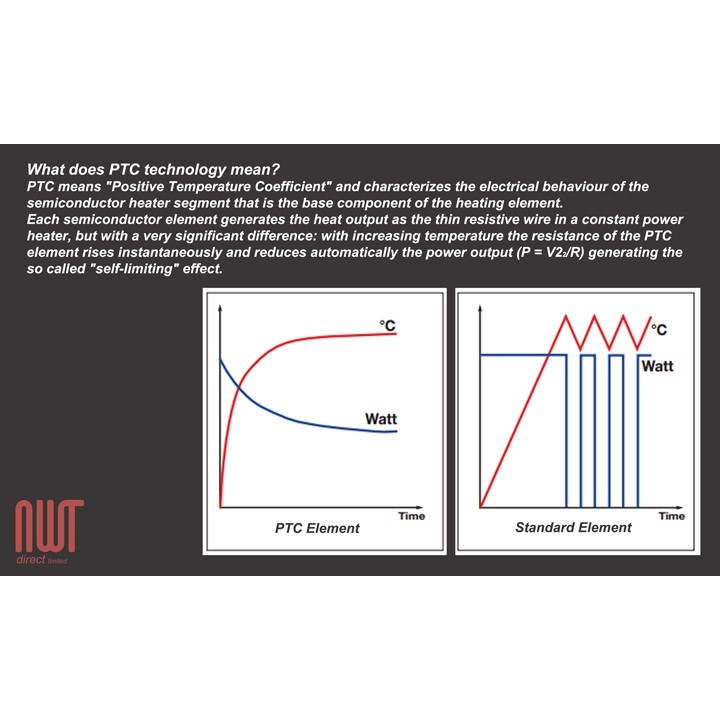

What is PTC technology?

How PTC works

What i need to know?



The electric heating element must always be installed into a radiator of towel rail which has been pre-filled with heating solution. If the element is exposed to air and turned on it will burn out. This misuse is not covered under the manufacturer guarantee.

The element can be installed vertically or horizontally at the bottom of the towel rail or radiator.

We recommend all installation is carried out by a qualified electrician.

The electric element is supplied with a 1 Year manufacturer guarantee.



Recommended Element Size Matrix (Watts)

Approx

Height(mm)

800 1000 1200 1400 1600 1800

Width (mm)

300   150W 150W 250W/300W 300W 600W 600W
400 150W 250W/300W 300W 300W 600W 600W
500 250W/300W 300W 300W/400W 400W/600W 600W 600W
600 300W 400W/600W 400W/600W 400W/600W 600W 600W



This table should be used as a guide only.

If you are unsure or would like clarification please contact us and one of our sales team will be more than happy to help.
