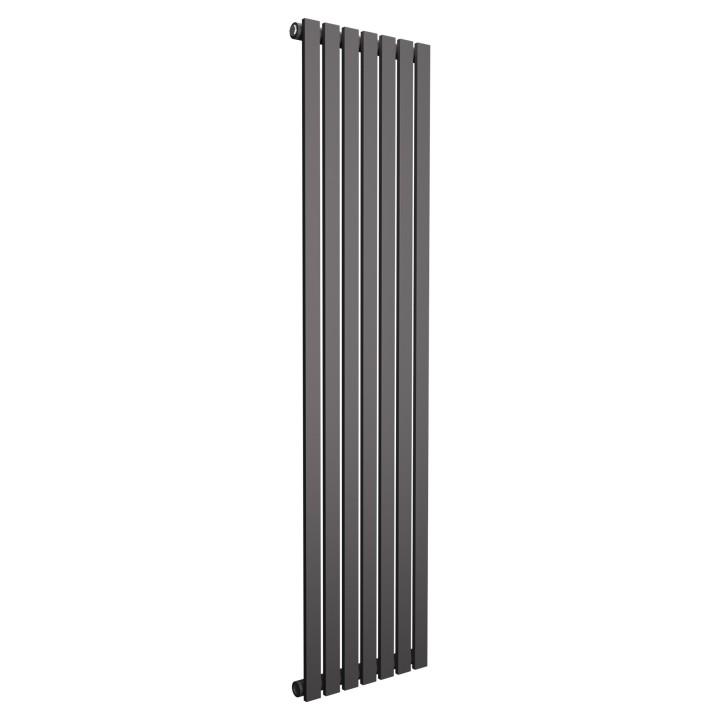

Ultraheat "Linear" Vertical Anthracite Single & Double Flat Panel Radiators (8 Sizes)

NWT1977-38423
LS1507G
  • In Stock
  • Btus: 1810 - 6701
  • Watts: 530 - 1964
Ultraheat "Linear" Vertical Anthracite Single & Double Flat Panel Radiators (7 Sizes)
search

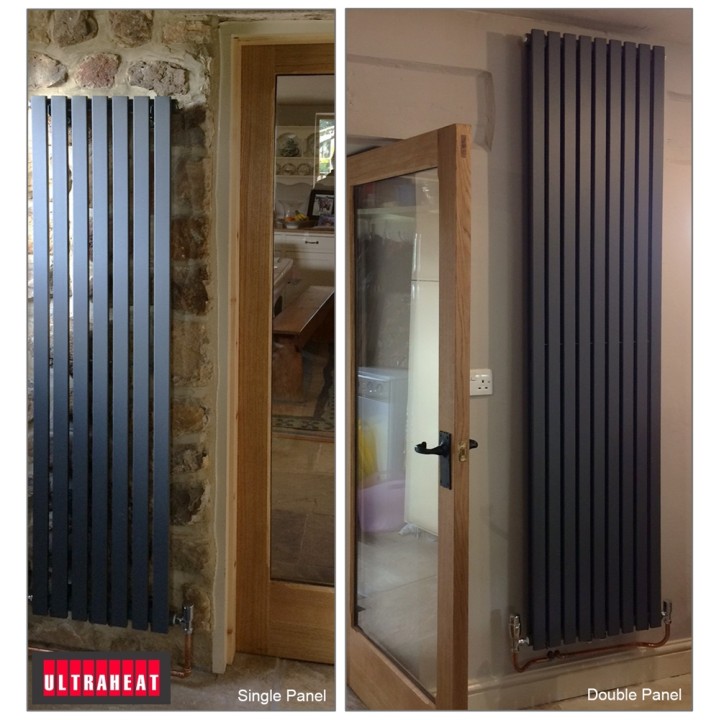

  • Ultraheat "Linear" Vertical Anthracite Single & Double Flat Panel Radiators (7 Sizes)

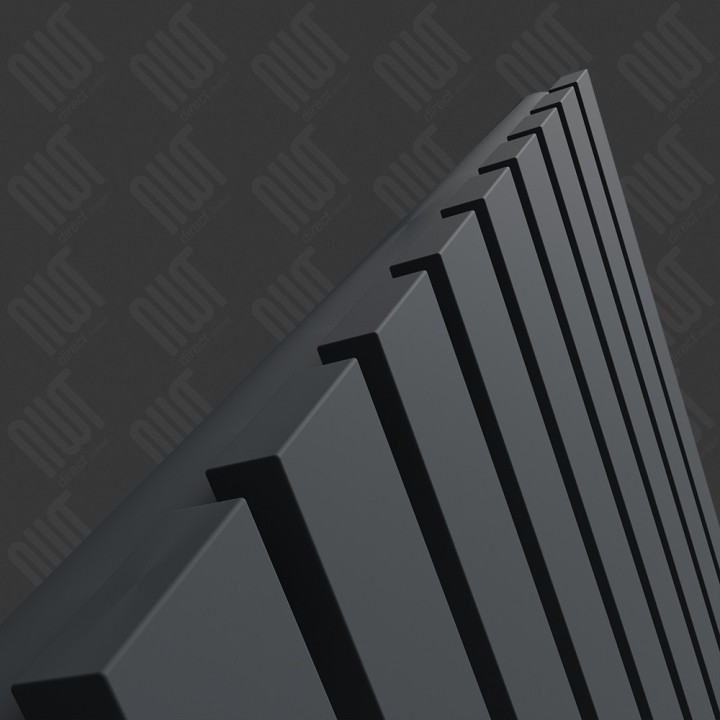

  • Linear Anthracite Single Radiator - Close up

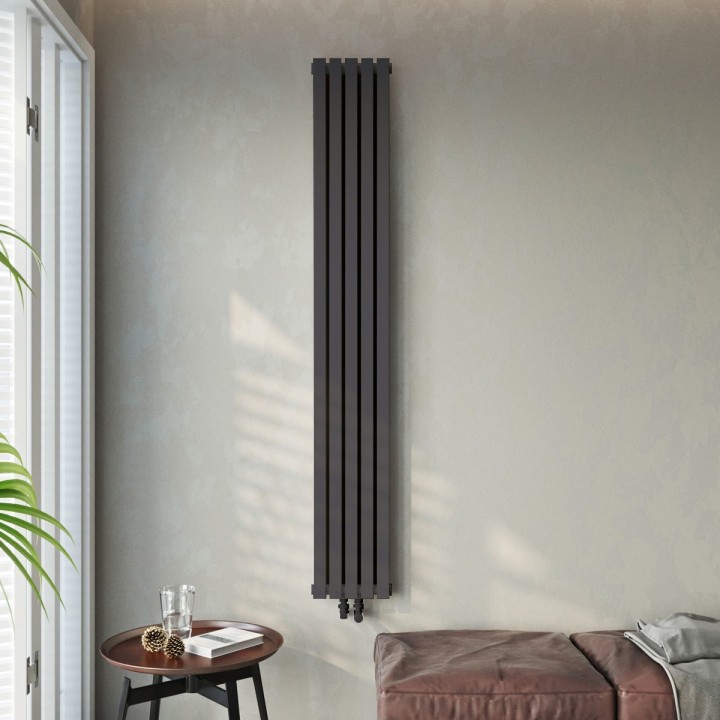

  • Linear Anthracite Radiator - Insitu

The slimline Linear radiator stands tall and fits seamlessly into a variety of roomsets in a Anthracite finish. This contemporary radiator can be used throughout the home and will enhance any modern kitchen or bathroom. The Linear sits flush to the wall in either a single of double panel model.

Size
£256.00
VAT included
5% Checkout Discount on 3 or more Ultraheat Radiators or Towel Rails
local_shipping If you order before 2pm your order will be delivered FREE between Friday, 19th August - Monday, 22nd August
On display in the showroom. This product is available to view in our Conwy based showroom.

Data sheet

Height (mm)
1500mm, 1800mm, 2000mm
Width (mm)
268mm, 374mm, 480mm, 586mm
Depth (mm)
48mm(Single), 61mm(Double)
Outer Finish
Anthracite Powder Coating
Material
Mild Steel
Design
Linear
Output BTUs
1810, 2080, 2534, 3258, 3381, 3921, 6087, 6701
Output Watts
530, 610, 743, 955, 991, 1149, 1784, 1964
Tube Diameter (mm)
40mm Sections
Tube Bar Pattern
5, 7, 9 or 11 Vertical Sections (x2 for Double Models) - See Widths
Fixing Kit
4 Point Fixing Kit
Accessories
Supplied with Wall Brackets, Bleed Valve & Blank Plug
Guarantee
5 Years
Projection
88mm - 109mm
Pipe Centres
50mm or Width of Radiator Plus Valve Widths
Socket Width
1/2" BSP
Fuel Type
Central Heating
Brand
Ultraheat Ultraheat

Downloads

The slimline Linear radiator stands tall and fits seamlessly into a variety of roomsets in a Anthracite finish. This contemporary radiator can be used throughout the home and will enhance any modern kitchen or bathroom. The Linear sits flush to the wall in either a single of double panel model.

NOTE: Due to the weight of the Linear Double Radiators we recommend you install them onto solid walls.

Max Working Pressure: 10 Bar 5 Year Guarantee
Product Code Height Width Depth Pipe Centers Wall to Face BTU's Watt's
LS1507A 1500 374 48 50 - 464 76 2080 609
LS1805A 1800 268 48 50 - 358 76 1810 530
LS1807A 1800 374 48 50 - 464 76 2534 732
LS1809A 1800 480 48 50 - 570 76 3258 954
LD1507A 1500 374 61 50 - 464 97 3921 1148
LD1805A 1800 268 61 50 - 358 97 3381 990
LD1809A 1800 480 61 50 - 570 97 6087 1782
LD2009A 2000 480 61 50 - 570 97 6701 1962
  • Vertical Flat Panel Sections (Single OR Double Profile Sections)
  • A choice of 8 models to suit your needs from 2336 BTU (684 Watts) up to 9343 BTU (2736 Watts)
  • High quality Anthracite coated finish
  • 5 year warranty
  • Built to last: 1.5mm thick mild steel for guaranteed quality
  • Tested to BS EN 442 Standards
  • ISO9001:2008 Registered Manufacturer
  • CE Marked

This is just a guide for reference only, rooms may require more than one radiator. If this applies to you, divide the required output between the number of radiators required. All figures given are for Delta T 50°
