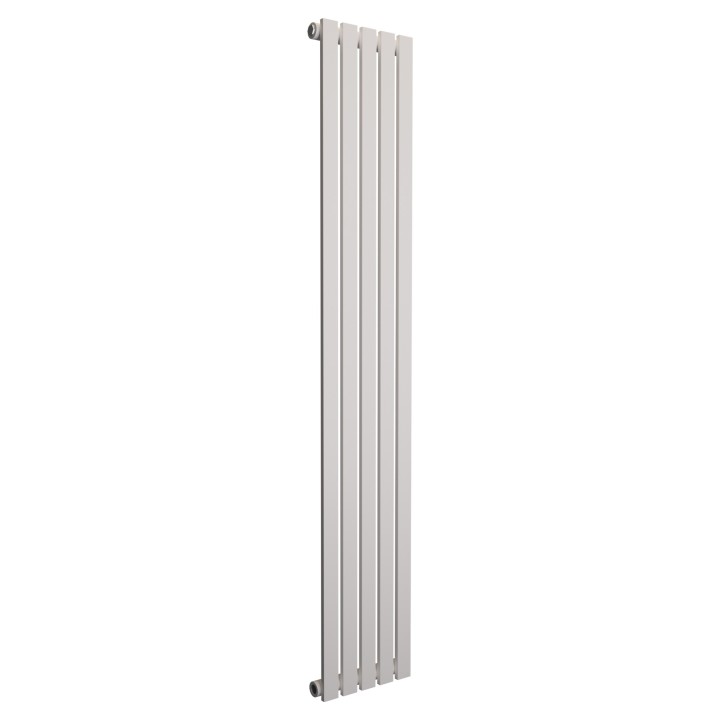

Ultraheat "Linear" Vertical White Single & Double Flat Panel Radiators (15 Sizes)

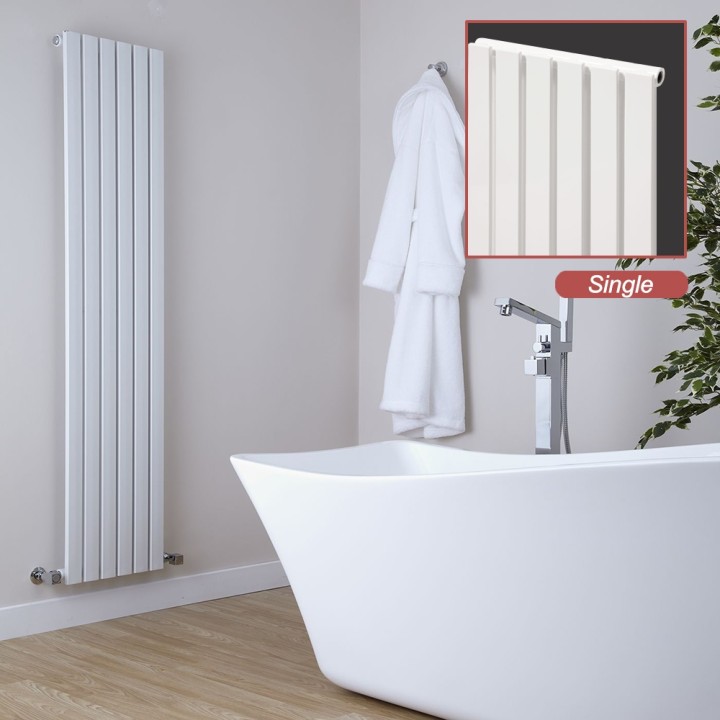

The slimline Linear radiator stands tall and fits seamlessly into a variety of roomsets in a gloss white finish. This contemporary radiator can be used throughout the home and will enhance any modern kitchen or bathroom. The Linear sits flush to the wall in either a single of double panel model.
Data sheet
- Outer Finish
- White Powder Coating
- Height (mm)
- 1500mm, 1800mm, 2000mm
- Width (mm)
- 268mm, 374mm, 480mm, 586mm
- Depth (mm)
- 48mm(Single), 61mm(Double)
- Design
- Linear
- Colour Family
- White
- Material
- Mild Steel
- Output BTUs
- 1503, 1803, 2254, 2705, 3108, 3706, 4057, 4338, 4351, 5188, 6073, 6671, 7808
- Output Watts
- 440, 528, 661, 793, 911, 1086, 1189, 1271, 1275, 1520, 1780, 1955, 2288
- Tube Diameter (mm)
- 40mm Sections
- Tube Bar Pattern
- 5, 7, 9 or 11 Vertical Sections (x2 for Double Models) - See Widths
- Fixing Kit
- 4 Point Fixing Kit
- Accessories
- Supplied with Wall Brackets, Bleed Valve & Blank Plug
- Guarantee
- 5 Years
- Projection
- 88mm - 109mm
- Pipe Centres
- Underside: 50mm, Side: Width plus Valves
- Socket Width
- 1/2" BSP
- Fuel Type
- Central Heating
- Brand
- Ultraheat
The slimline Linear radiator stands tall and fits seamlessly into a variety of roomsets in a gloss white finish. This contemporary radiator can be used throughout the home and will enhance any modern kitchen or bathroom. The Linear sits flush to the wall in either a single of double panel model.
NOTE: Due to the weight of the Linear Double Radiators we recommend you install them onto solid walls.
RAL 9016 | Max Working Pressure: 10 Bar | 5 Year Guarantee | |||||
Product Code | Height | Width | Depth | Pipe Centers | Wall to Face | BTU's | Watt's |
LS1505W | 1500 | 268 | 48 | 50 - 358 | 76 | 1486 | 435 |
LS1507W | 1500 | 374 | 48 | 50 - 464 | 76 | 2080 | 609 |
LS1509W | 1500 | 480 | 48 | 50 - 570 | 76 | 2674 | 783 |
LS1805W | 1800 | 268 | 48 | 50 - 358 | 76 | 1810 | 530 |
LS1807W | 1800 | 374 | 48 | 50 - 464 | 76 | 2534 | 742 |
LS1809W | 1800 | 480 | 48 | 50 - 570 | 76 | 3258 | 954 |
LS2005W | 1800 | 268 | 48 | 50 - 358 | 76 | 2015 | 590 |
LD1505W | 1500 | 268 | 61 | 50 - 358 | 97 | 2579 | 820 |
LD1507W | 1500 | 374 | 61 | 50- 464 | 97 | 3921 | 1148 |
LD1805W | 1800 | 268 | 61 | 50 - 538 | 97 | 3381 | 990 |
LD1807W | 1800 | 374 | 61 | 50 - 464 | 97 | 4734 | 1386 |
LD1809W | 1800 | 480 | 61 | 50 - 570 | 97 | 6087 | 1782 |
LD1811W | 1800 | 586 | 61 | 50 - 676 | 97 | 7439 | 2178 |
LD2005W | 2000 | 268 | 61 | 50 - 358 | 97 | 3723 | 1090 |
LD2009W | 2000 | 480 | 61 | 50 - 570 | 97 | 6701 | 1962 |
- Vertical Flat Panel Sections (Single OR Double Profile Sections)
- A choice of 15 models to suit your needs from 1947 BTU (570 Watts) up to 10278 BTU (3010 Watts)
- High quality gloss white powder coated finish
- 5 year warranty
- Built to last: 1.5mm thick mild steel for guaranteed quality
- Tested to BS EN 442 Standards
- ISO9001:2008 Registered Manufacturer
- CE Marked
Radiator Valves
Others in range
This is just a guide for reference only, rooms may require more than one radiator. If this applies to you, divide the required output between the number of radiators required. All figures given are for Delta T 50°
