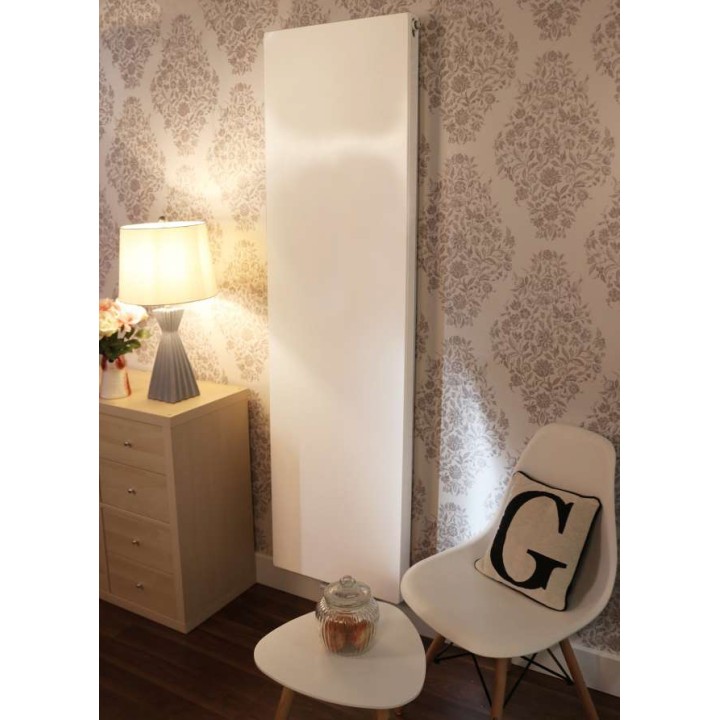

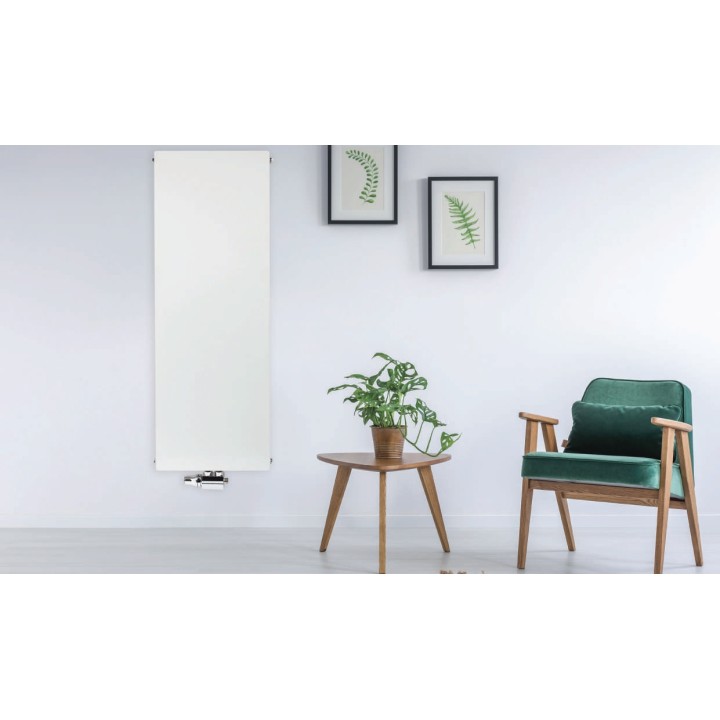

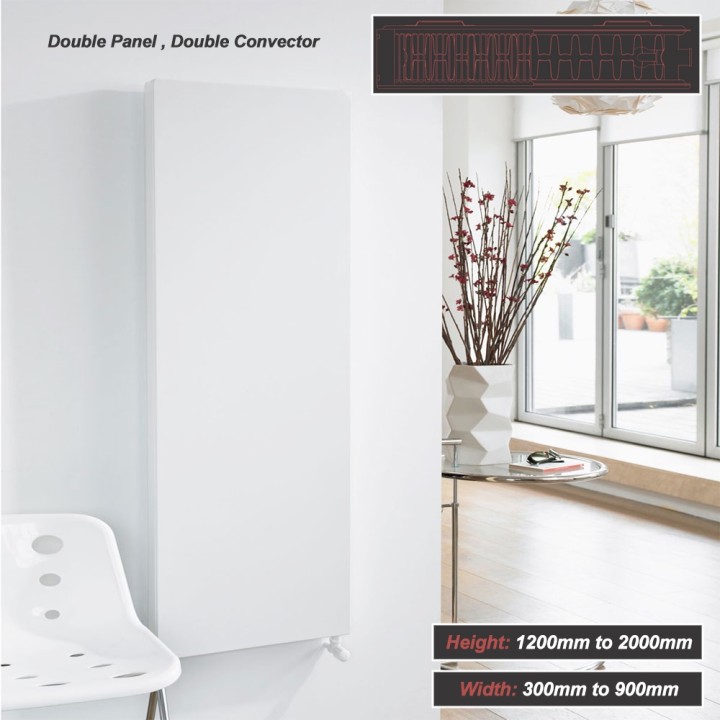

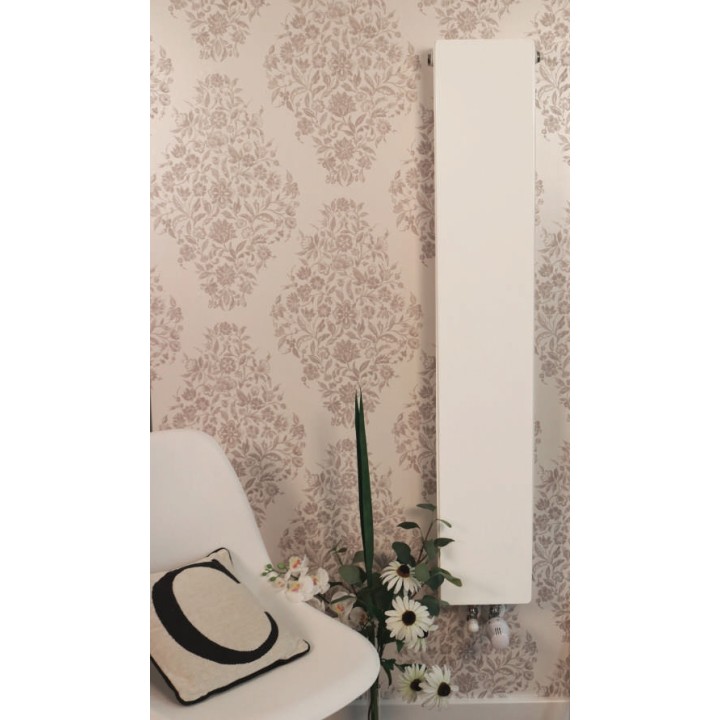

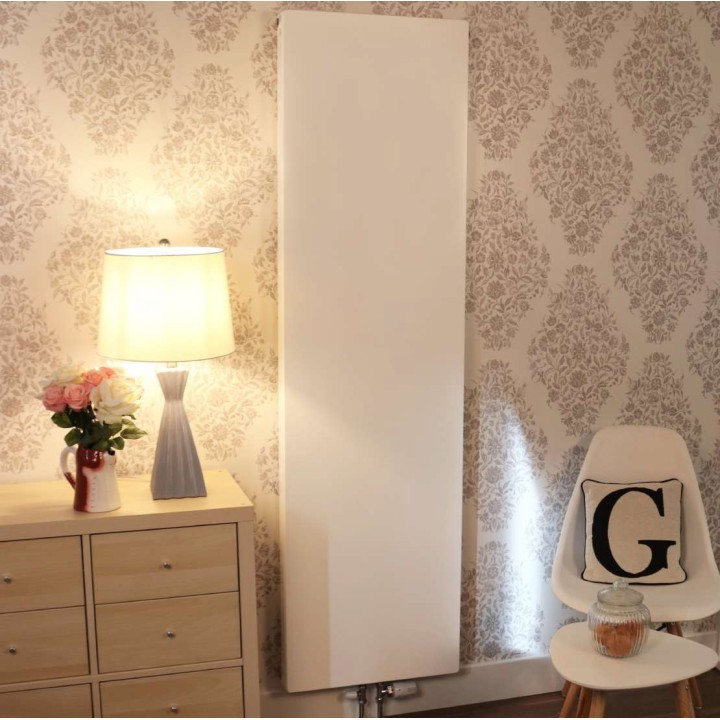

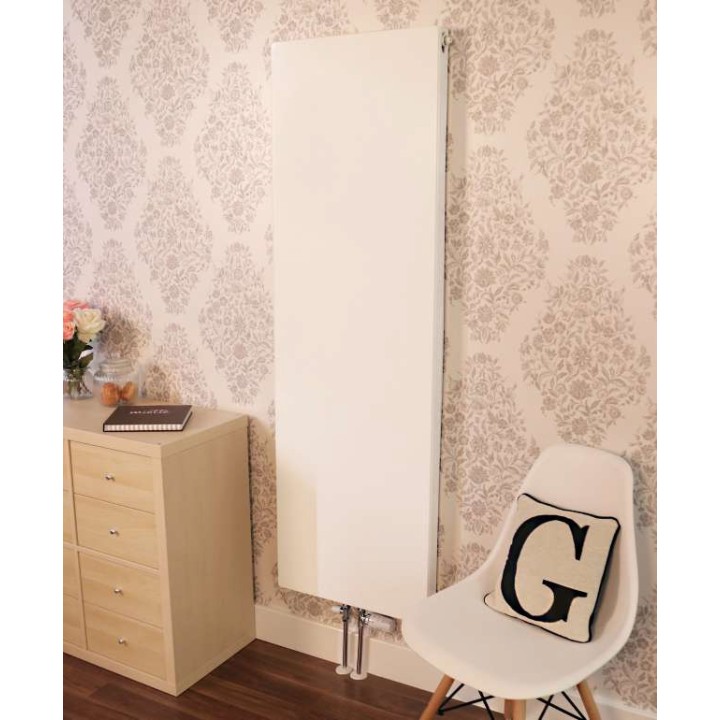

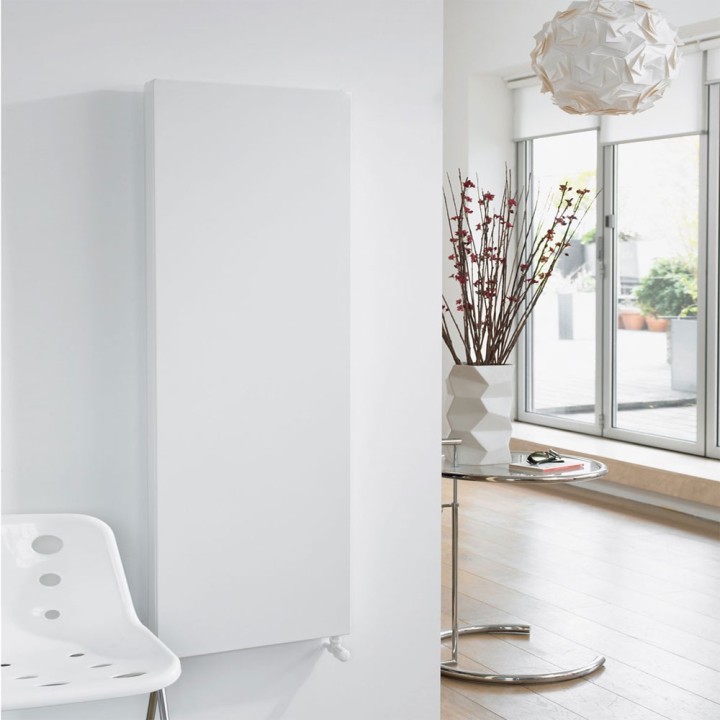

Ultraheat Planal Vertical White Radiator - Double Panel, Double Convector - 300mm (w) x 1600mm (h)
Product Code:
NWT2586-41185
An elegant radiator which utilises convected radiator heat to make this level of style affordable for every home. The Planal range of radiators contain a high output steel panel convector radiator surrounded by a stunning white cover.
Description
An elegant radiator which utilises convected radiator heat to make this level of style affordable for every home. The Planal range of radiators contain a high output steel panel convector radiator surrounded by a stunning white cover.
| 1200mm High - Double Panel - Double Convector | ||||
| Height | Width | Pipe Centres | Watts | Btu's |
| 1200 | 500 | 450 | 1380 | 4713 |
| 1200 | 600 | 550 | 1612 | 5505 |
| 1200 | 700 | 650 | 1881 | 6424 |
| 1200 | 900 | 850 | 2418 | 8257 |
| 1400mm High - Double Panel - Double Convector | ||||
| Height | Width | Pipe Centres | Watts | Btu's |
| 1400 | 400 | 350 | 1333 | 4856 |
| 1400 | 500 | 450 | 1601 | 5467 |
| 1400 | 600 | 550 | 1869 | 6383 |
| 1400 | 700 | 650 | 2181 | 7448 |
| 1400 | 900 | 850 | 2804 | 9576 |
| 1600mm High - Double Panel - Double Convector | ||||
| Height | Width | Pipe Centres | Watts | Btu's |
| 1600 | 300 | 250 | 1116 | 3811 |
| 1600 | 400 | 350 | 1422 | 4856 |
| 1600 | 500 | 450 | 1728 | 5901 |
| 1600 | 600 | 550 | 2034 | 6946 |
| 1600 | 700 | 650 | 2373 | 8104 |
| 1600 | 900 | 850 | 3051 | 10419 |
| 1800mm High - Double Panel - Double Convector | ||||
| Height | Width | Pipe Centres | Watts | Btu's |
| 1800 | 300 | 250 | 1167 | 3811 |
| 1800 | 400 | 350 | 1511 | 5160 |
| 1800 | 500 | 450 | 1855 | 6335 |
| 1800 | 600 | 550 | 2197 | 7503 |
| 1800 | 700 | 650 | 2564 | 8756 |
| 1800 | 900 | 850 | 3296 | 11256 |
| 2000mm High - Double Panel - Double Convector | ||||
| Height | Width | Pipe Centres | Watts | Btu's |
| 2000 | 300 | 250 | 1259 | 4299 |
| 2000 | 400 | 350 | 1628 | 5560 |
| 2000 | 500 | 450 | 1999 | 6827 |
| 2000 | 600 | 550 | 2370 | 8094 |
| 2000 | 700 | 650 | 2765 | 9442 |
| 2000 | 900 | 850 | 3554 | 12137 |
- Steel Double Panel Double Convector Radiators
- A choice of 27 models to suit your needs from 3811 BTU (1116 Watts) up to 12137 BTU (3554 Watts)
- High quality white coated finish
- 5 year warranty
- Built to last: 1.5mm thick mild steel for guaranteed quality
- Tested to BS EN 442 Standards
- ISO9001:2008 Registered Manufacturer
- CE Marked
Product Specifications
Everything you need to know about this product, from dimensions and installation to finish and performance.
Dimensions
Width (mm)
300mm
Height (mm)
1600mm
Depth (mm)
102mm
Projection
126 to 148mm
Pipe Centres
50mm Underside or 250mm Side Entry
Socket Width
1/2" BSP
Pipe connection (mm)
15mm
Technical Specifications
Output BTUs
3811
Fuel Type
Central Heating
Output Watts
1116
Materials & Construction
Material
Mild Steel
Design & Appearance
Design
Planal
Outer Finish
White Powder Coating
Colour Family
White
Fixtures & Fittings
Fixing Kit
Wall Mounting Kit, Bleed Valve & Blank Plug Included
Certifications & Standards
Guarantee
5 Years
Brand & Product Codes
Manufacturer
Ultraheat
Ultraheat
Quick Code
NWT2586-41185
Files & Downloads
Installation guides, technical sheets and supporting product documents.
You May Need
Below are some products that are suitable for your purchase. You may need to add these to your order.
In Stock
In Stock
In Stock
Reviews & Questions
Reviews
Questions & Answers
Btu Calculator
This is a guide for reference only. Rooms may require more than one radiator. If this applies to you, divide the required output between the number of radiators required. All figures given are for Delta T 50°.
