Ultraheat Planal Double Panel Double Convector Horizontal Radiator - 500mm (w) x 300mm (h)

Product Code: NWT2583-41042
Ultraheat "Planal" Flat Panel Horizontal White Radiator (59 Sizes - Double Panel, Double Convector)
Ultraheat "Planal" Flat Panel Horizontal White Radiator (59 Sizes - Double Panel, Double Convector)
Ultraheat "Planal" Flat Panel Horizontal White Radiator (59 Sizes - Double Panel, Double Convector)
Ultraheat "Planal" Flat Panel Horizontal White Radiator (59 Sizes - Double Panel, Double Convector)
Ultraheat "Planal" Flat Panel Horizontal White Radiator (59 Sizes - Double Panel, Double Convector)
Ultraheat "Planal" Flat Panel Horizontal White Radiator (59 Sizes - Double Panel, Double Convector)

An elegant radiator which utilises convected radiator heat to make this level of style affordable for every home. The Planal range of radiators contain a high output steel panel convector radiator surrounded by a stunning white cover.

Radiator Height
Selected: 300mm
Radiator Width
Selected: 500mm
£135.00
VAT included
In stock
Ready to dispatch
Secure checkout
VAT included
Easy returns
local_shipping
Free Delivery
Order before 2PM arrow_right_altDelivered between Monday, 26th October - Tuesday, 27th October

Description

An elegant radiator which utilises convected radiator heat to make this level of style affordable for every home. The Planal range of radiators contain a high output steel panel convector radiator surrounded by a stunning white cover.

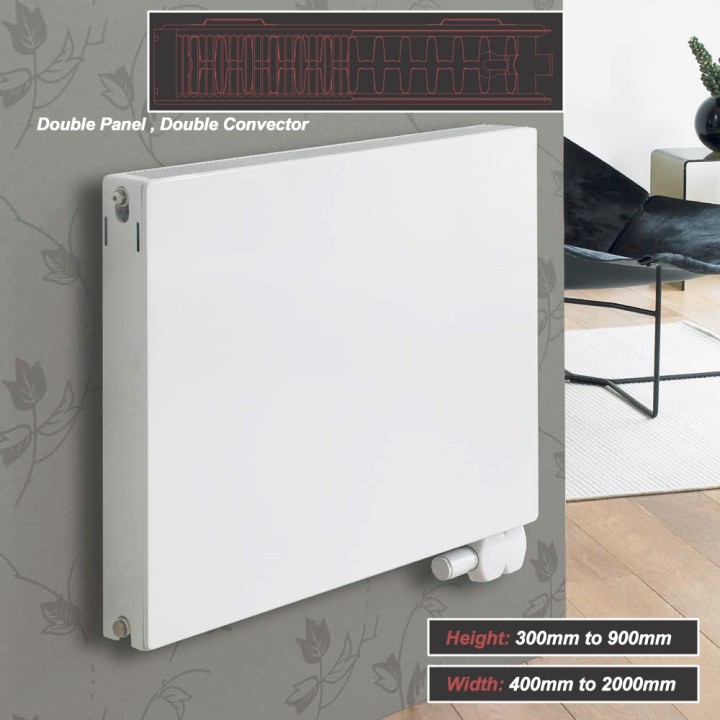

300mm High - Double Panel - Double Convector
Height Width Pipe Centres Watts Btu's
300 500 590 550 1725
300 800 890 808 2760
300 1000 109 1010 3450
300 1200 1290 1212 4140
300 1400 1490 1414 4830
300 2000 2090 2020 6900
400mm High - Double Panel - Double Convector
Height Width Pipe Centres Watts Btu's
400 400 400 517 1767
400 500 500 647 2209
400 600 600 776 2650
400 700 700 905 3092
400 800 800 1034 3534
400 900 900 1164 3975
400 1000 1000 1293 4417
400 1100 1100 1422 4859
400 1200 1200 1552 5300
400 1400 1400 1810 6184
400 1600 1600 2069 7067
400 1800 1800 2327 7951
400 2000 2000 2586 8834
500mm High - Double Panel - Double Convector
Height Width Pipe Centres Watts Btu's
500 400 400 622 2124
500 500 500 777 2655
500 600 600 932 3185
500 700 700 1088 3716
500 800 800 1243 4247
500 900 900 1399 4778
500 1000 1000 1554 5309
500 1100 1100 1709 5840
500 1200 1200 1865 6371
500 1400 1400 2176 7433
500 1600 1600 2486 8494
500 1800 1800 2797 9556
500 2000 2000 3108 10618
600mm High - Double Panel - Double Convector
Height Width Pipe Centres Watts Btu's
600 400 400 718 2452
600 500 500 897 3065
600 600 600 1076 3677
600 700 700 1256 4290
600 800 800 1435 4903
600 900 900 1615 5516
600 1000 1000 1794 6129
600 1100 1100 1973 6742
600 1200 1200 2153 7355
600 1400 1400 2512 8581
600 1600 1600 2870 9806
600 1800 1800 3229 11032
600 2000 2000 3588 12258
700mm High - Double Panel - Double Convector
Height Width Pipe Centres Watts Btu's
700 400 400 806 2755
700 500 500 1008 3444
700 600 600 1210 4132
700 700 700 1411 4821
700 800 800 1613 5510
700 900 900 1814 6198
700 1000 1000 2016 6887
700 1100 1100 2218 7576
700 1200 1200 2419 8264
700 1400 1400 2822 9642
900mm High - Double Panel - Double Convector
Height Width Pipe Centres Watts Btu's
900 400 400 963 3289
900 500 500 1203 4111
900 600 600 1444 4933
900 700 700 1685 5755
  • Steel Single Panel Double Convector Radiators
  • A choice of 59 models to suit your needs from  1725 BTU (550 Watts) up to 12258 BTU (3588 Watts)
  • High quality white coated finish
  • 5 year warranty
  • Built to last: 1.5mm thick mild steel for guaranteed quality
  • Tested to BS EN 442 Standards
  • ISO9001:2008 Registered Manufacturer
  • CE Marked

Product Specifications

Everything you need to know about this product, from dimensions and installation to finish and performance.

Dimensions
Width (mm) 400mm, 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm, 1100mm, 1200mm, 1400mm, 1600mm, 1800mm, 2000mm
Height (mm) 300mm, 400mm, 500mm, 600mm, 700mm, 900mm
Depth (mm) 102mm
Projection 126mm to 137mm
Pipe Centres See Description
Socket Width 1/2" BSP
Pipe connection (mm) 15mm
Technical Specifications
Output BTUs 1725, 1767, 2124, 2209, 2452, 2650, 2655, 2755, 2760, 3065, 3092, 3185, 3289, 3444, 3450, 3534, 3677, 3716, 3975, 4111, 4132, 4140, 4247, 4290, 4417, 4778, 4821, 4830, 4859, 4903, 4933, 5300, 5309, 5510, 5516, 5755, 5840, 6129, 6184, 6198, 6371, 6742, 6887, 6900, 7067, 7355, 7433, 7576, 7951, 8264, 8494, 8581, 8834, 9556, 9642, 9806, 10618, 11032, 12258
Fuel Type Central Heating
Materials & Construction
Material Mild Steel
Design & Appearance
Design Planal
Outer Finish White Powder Coating
Colour Family White
Fixtures & Fittings
Fixing Kit Wall Mounting Kit, Bleed Valve & Blank Plug Included
Certifications & Standards
Guarantee 5 Years
Brand & Product Codes
Manufacturer Ultraheat
Quick Code NWT2583-41042

Files & Downloads

Installation guides, technical sheets and supporting product documents.

picture_as_pdf
Product Datasheet

Technical

PDF
arrow_downward
picture_as_pdf
Planal DPDC

Technical

PDF 2.13MB
arrow_downward

You May Need

Below are some products that are suitable for your purchase. You may need to add these to your order.

doneIn Stock

£25.50
Add to cart
doneIn Stock

£32.50
Add to cart
doneIn Stock

From: £32.50
Add to cart
doneIn Stock

£22.50
Add to cart
doneIn Stock

£23.50
Add to cart
doneIn Stock

From: £25.50
Add to cart
doneIn Stock

£108.00
View Options
doneIn Stock

From: £130.00
Add to cart
doneIn Stock

From: £428.00
Add to cart

Reviews

Questions & Answers

Btu Calculator

This is a guide for reference only. Rooms may require more than one radiator. If this applies to you, divide the required output between the number of radiators required. All figures given are for Delta T 50°.
