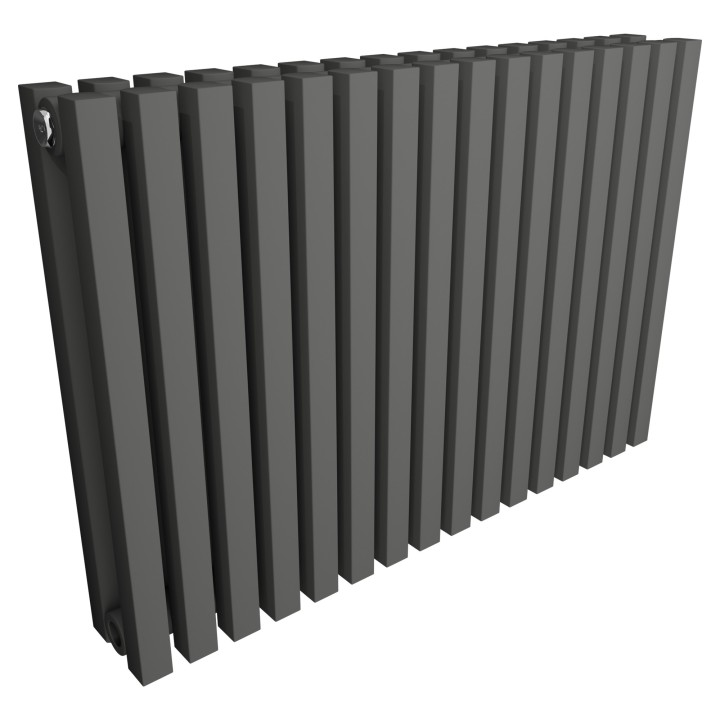

Ultraheat Klon Designer Anthracite Horizontal Double Radiator - 611mm (w) x 420mm (h)
Product Code:
NWT1972-38335
check_box
In stock
The Ultraheat KLON Radiator is a contemporary design with a D - Shaped profile double tubes (25mm x 25mm) available in an anthracite finish combining aesthetics and performance.
local_shipping
Order now for FREE delivery between Friday, 15th August - Monday, 18th August
This product is available to view in our Conwy based showroom.
| Dimensions | |
|---|---|
| Width (mm) | 611mm |
| Height (mm) | 420mm |
| Depth (mm) | 87mm |
| Tube Diameter (mm) | 25mm x 25mm D-Profile Sections |
| Projection | 109mm |
| Pipe Centres | 701mm |
| Socket Width | 1/2" BSP |
| Technical Specifications | |
|---|---|
| Output BTUs | 3046 |
| Output Watts | 892 |
| Fuel Type | Central Heating |
| Materials & Construction | |
|---|---|
| Material | Mild Steel |
| Design & Appearance | |
|---|---|
| Design | Klon |
| Outer Finish | Anthracite Powder Coating |
| Colour Family | Grey |
| Tube Bar Pattern | 32 Sections |
| Fixtures & Fittings | |
|---|---|
| Fixing Kit | Four Point Fixing Kit |
| Accessories | Supplied with Wall Brackets, Bleed Valve & Blank Plug |
| Certifications & Standards | |
|---|---|
| Guarantee | 5 Years |
| Brand | |
|---|---|
| Brand | Ultraheat |
| EAN13 | 767550442512 |
| Quick find code: | NWT1972-38335 |
Description
The Ultraheat KLON Radiator is a contemporary design with a D - Shaped profile double tubes (25mm x 25mm) available in an anthracite finish combining aesthetics and performance.
NOTE: Due to the weight of the Klon radiators we recommend you install them onto solid walls.
| Max Working Pressure: 10 Bar | 5 Year Guarantee | ||||||
| Product Code | Height | Width | Depth | Pipe Centers | Wall to Face | BTU's | Watt's |
| KD416GY | 420 | 611 | 87 | 701 | 109 | 3046 | 892 |
| KD422GY | 420 | 839 | 87 | 929 | 109 | 4190 | 1227 |
| KD428GY | 420 | 1067 | 87 | 1157 | 109 | 5338 | 1563 |
| KD432GY | 420 | 1219 | 87 | 1309 | 109 | 6099 | 1786 |
| KD436GY | 420 | 1371 | 87 | 1461 | 109 | 6864 | 2010 |
| KD614GY | 600 | 535 | 87 | 625 | 109 | 3200 | 937 |
| KD616GY | 600 | 611 | 87 | 701 | 109 | 3657 | 1071 |
| KD622GY | 600 | 839 | 87 | 929 | 109 | 5030 | 1473 |
| KD628GY | 600 | 1067 | 87 | 1157 | 109 | 6407 | 1876 |
| KD632GY | 600 | 1219 | 87 | 1309 | 109 | 7322 | 2144 |
| KD636GY | 600 | 1371 | 87 | 1461 | 109 | 8237 | 2412 |
- Vertical columns (Double D-Profile Sections)
- A choice of 12 models to suit your needs from 3046 BTU (892 Watts) up to 9610 BTU (2814 Watts)
- High quality Anthracite finish
- 5 year warranty
- Built to last: 1.5mm thick mild steel for guaranteed quality
- Tested to BS EN 442 Standards
- ISO9001:2008 Registered Manufacturer
- CE Marked
Radiator Valves
In Stock
Anthracite Thermostatic Valves for Radiators & Towel Rails (Pair of Angled, Straight or Corner)
£42.50
-£3.00
From: £39.50
In Stock
In Stock
Others in range
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
This is just a guide for reference only, rooms may require more than one radiator. If this applies to you, divide the required output between the number of radiators required. All figures given are for Delta T 50°
