Name: Ultraheat Klon Black D-Profile Double Horizontal Radiator - 611mm (w) x 420mm (h)
Brand: Ultraheat
SKU: 3214
Price: 229 GBP
Availability: InStock

Description

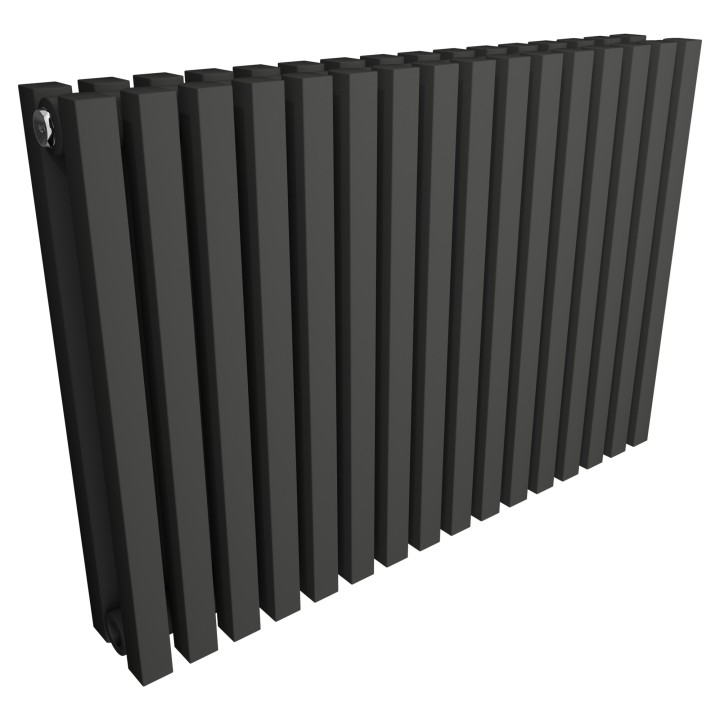

The Ultraheat KLON Radiator is a contemporary design with a D - Shaped profile double tubes (25mm x 25mm) available in a micro grain metallic black finish combining aesthetics and performance.

NOTE: Due to the weight of the Klon radiators we recommend you install them onto solid walls.

				Max Working Pressure: 10 Bar		5 Year Guarantee
Product Code	Height	Width	Depth	Pipe Centers	Wall to Face	BTU's	Watt's
KD416B	420	611	87	701	109	3046	892
KD422B	420	839	87	929	109	4190	1227
KD428B	420	1067	87	1157	109	5338	1563
KD432B	420	1219	87	1309	109	6099	1786
KD436B	420	1371	87	1461	109	6864	2010
KD614B	600	535	87	625	109	3200	937
KD616B	600	611	87	701	109	3657	1071
KD622B	600	839	87	929	109	5030	1473
KD628B	600	1067	87	1157	109	6407	1876
KD632B	600	1219	87	1309	109	7322	2144
KD636B	600	1371	87	1461	109	8237	2412
KD642B	600	1599	87	1689	109	9610	2814

Vertical columns (Double D-Profile Sections)
A choice of 12 models to suit your needs from 3046 BTU (892 Watts) up to 9610 BTU (2814 Watts)
High quality Micro Grain Metallic Black
5 year warranty
Built to last: 1.5mm thick mild steel for guaranteed quality
Tested to BS EN 442 Standards
ISO9001:2008 Registered Manufacturer
CE Marked

Product Specifications

Everything you need to know about this product, from dimensions and installation to finish and performance.

Dimensions

Width (mm) 611mm

Height (mm) 420mm

Depth (mm) 87mm

Tube Diameter (mm) 25mm x 25mm D-Profile Sections

Projection 109mm

Pipe Centres 701mm

Socket Width 1/2" BSP

Technical Specifications

Output BTUs 3046

Output Watts 892

Fuel Type Central Heating

Materials & Construction

Material Mild Steel

Design & Appearance

Design Klon

Outer Finish Black Powder Coating

Colour Family Black

Tube Bar Pattern 32 Sections

Fixtures & Fittings

Fixing Kit Four Point Fixing Kit

Accessories Supplied with Wall Brackets, Bleed Valve & Blank Plug

Certifications & Standards

Guarantee 5 Years

Brand & Product Codes

Manufacturer

Ultraheat

Quick Code NWT3214-43332

Files & Downloads

Installation guides, technical sheets and supporting product documents.

You May Need

Below are some products that are suitable for your purchase. You may need to add these to your order.

doneIn Stock

Angled Black Valves for Radiators & Towel Rails (Pair)

£25.50 -£4.00

From: £189.00

Add to cart

doneIn Stock

Ultraheat Klon Designer Chrome Single, D-Profile Vertical Radiators (7 Sizes)

From: £261.00

Add to cart

Reviews

Questions & Answers

Btu Calculator

This is a guide for reference only. Rooms may require more than one radiator. If this applies to you, divide the required output between the number of radiators required. All figures given are for Delta T 50°.

Meters Feet

Length

Width

Height

Room Type

Wall Type

Window Type

Below the Room

Above the Room

Number of Outside Walls

BTUs Required

Watts Required
