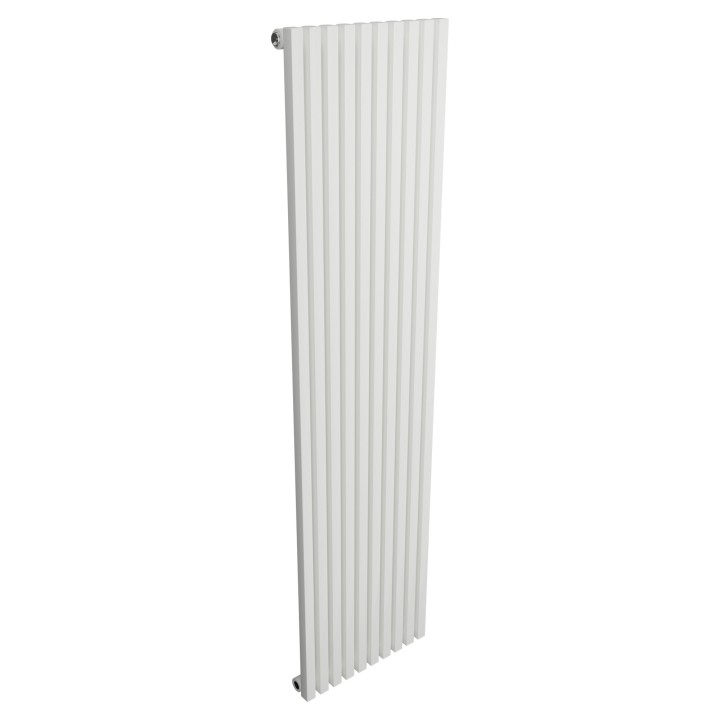

Ultraheat "Klon" Designer White Single & Double, D-Profile Vertical Radiators (11 Sizes)
Product Code:
NWT1973-38369
check_box
In stock

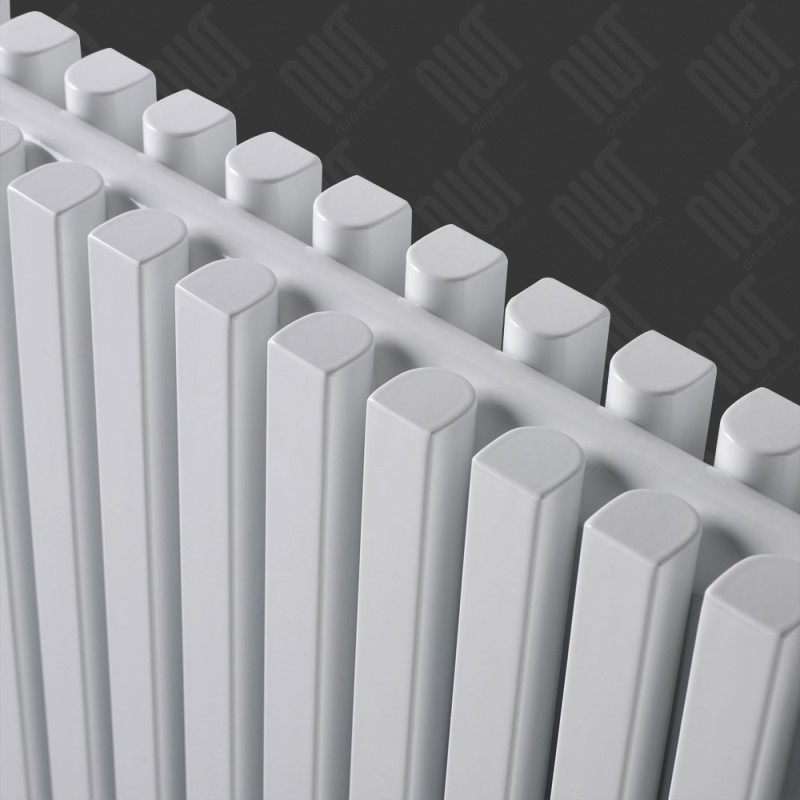

The Ultraheat KLON Radiator is a contemporary design with a D - Shaped profile double tubes (25mm x 25mm) available in a gloss white finish combining aesthetics and performance.
local_shipping
Order now for FREE delivery between Monday, 23rd June - Tuesday, 24th June
This product is available to view in our Conwy based showroom.
| Dimensions | |
|---|---|
| Width (mm) | 383mm, 459mm, 535mm, 611mm, 231mm |
| Height (mm) | 1800mm, 1500mm, 2000mm |
| Depth (mm) | 61mm or 87mm |
| Tube Diameter (mm) | 25mm x 25mm D-Profile Sections |
| Projection | 109mm |
| Pipe Centres | Underside: 50mm OR Side: Width Plus Valves |
| Socket Width | 1/2" BSP |
| Technical Specifications | |
|---|---|
| Output BTUs | 6198, 7438, 8678, 9611, 2937, 3483, 5573, 2879, 4798, 6717, 3719 |
| Output Watts | 2814, 860, 1020, 1632, 843, 1405, 1967, 1089, 1815, 2178, 2541 |
| Fuel Type | Central Heating |
| Detail | 2937 BTU's |
| Materials & Construction | |
|---|---|
| Material | Mild Steel |
| Design & Appearance | |
|---|---|
| Design | Klon |
| Outer Finish | White Powder Coating |
| Colour Family | White |
| Tube Bar Pattern | 6, 10, 12, 14 or 16 Vertical Sections (x2 for Double Models) - See Widths |
| Fixtures & Fittings | |
|---|---|
| Fixing Kit | Four Point Fixing Kit |
| Accessories | Supplied with Wall Brackets, Bleed Valve & Blank Plug |
| Certifications & Standards | |
|---|---|
| Guarantee | 5 Years |
| Brand | |
|---|---|
| Brand | Ultraheat |
| EAN13 | 767550442529 |
Description
The Ultraheat KLON Radiator is a contemporary design with a D - Shaped profile double tubes (25mm x 25mm) available in a gloss white finish combining aesthetics and performance.
NOTE: Due to the weight of the Klon radiators we recommend you install them onto solid walls.
| RAL 9016 | Max Working Pressure: 10 Bar | 5 Year Guarantee | |||||
| Product Code | Height | Width | Depth | Pipe Centers | Wall to Face | BTU's | Watt's |
| KS1510W | 1500 | 383 | 61 | 50 - 473 | 88 | 2937 | 860 |
| KS1810W | 1800 | 383 | 61 | 50 - 549 | 88 | 3483 | 1020 |
| KS1816W | 1800 | 611 | 61 | 50 - 701 | 88 | 5573 | 1632 |
| KD1506W | 1500 | 231 | 87 | 50 - 321 | 109 | 2879 | 843 |
| KD1510W | 1500 | 383 | 87 | 50 - 473 | 109 | 4798 | 1405 |
| KD1514W | 1500 | 535 | 87 | 50 - 625 | 109 | 6717 | 1967 |
| KD1806W | 1800 | 231 | 87 | 50 - 321 | 109 | 3719 | 1089 |
| KD1810W | 1800 | 383 | 87 | 50 - 473 | 109 | 6198 | 1815 |
| KD1812W | 1800 | 459 | 87 | 50 - 549 | 109 | 7438 | 2178 |
| KD1814W | 1800 | 535 | 87 | 50 - 625 | 109 | 8678 | 2541 |
| KD2014W | 2000 | 535 | 87 | 50 - 625 | 109 | 9611 | 2814 |
- Vertical columns (Single OR Double D-Profile Sections)
- A choice of 11 models to suit your needs from 2897 BTU (843 Watts) up to 8678 BTU (2541 Watts)
- High quality gloss white powder coated finish
- 5 year warranty
- Built to last: 1.5mm thick mild steel for guaranteed quality
- Tested to BS EN 442 Standards
- ISO9001:2008 Registered Manufacturer
- CE Marked
Radiator Valves
In Stock
In Stock
In Stock
Others in range
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
This is just a guide for reference only, rooms may require more than one radiator. If this applies to you, divide the required output between the number of radiators required. All figures given are for Delta T 50°
