Ultraheat "Klon" Designer White D-Profile Double Horizontal Radiators (12 Sizes)

NWT1971-38323
KD416W
  • In Stock
  • Btus: 3046 - 9610
  • 892 - 2814 Watts
Ultraheat "Klon" Designer White Horizontal Radiator
search
  • Ultraheat "Klon" Designer White Horizontal Radiator
  • Ultraheat "Klon" Designer White Horizontal Radiator
  • Ultraheat "Klon" Designer White Horizontal Radiator
  • Ultraheat "Klon" Designer White Horizontal Radiator

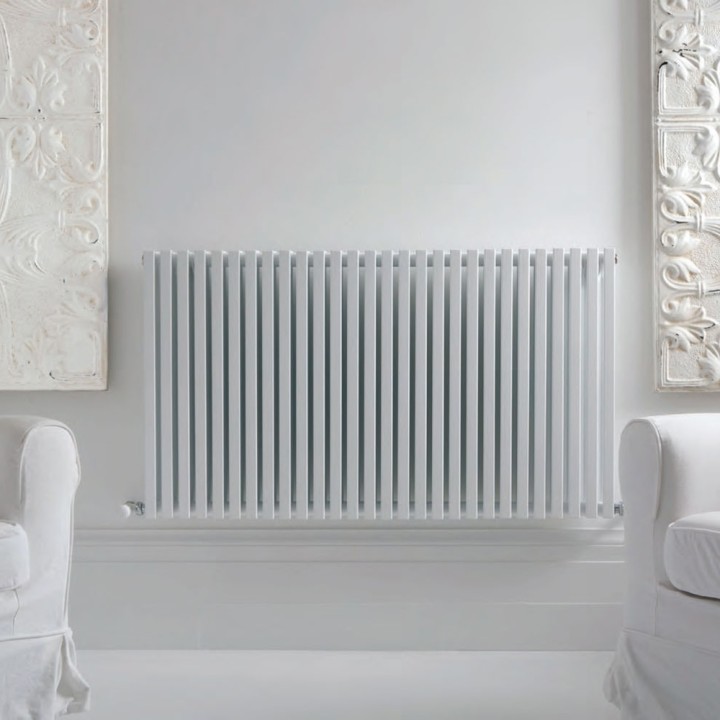

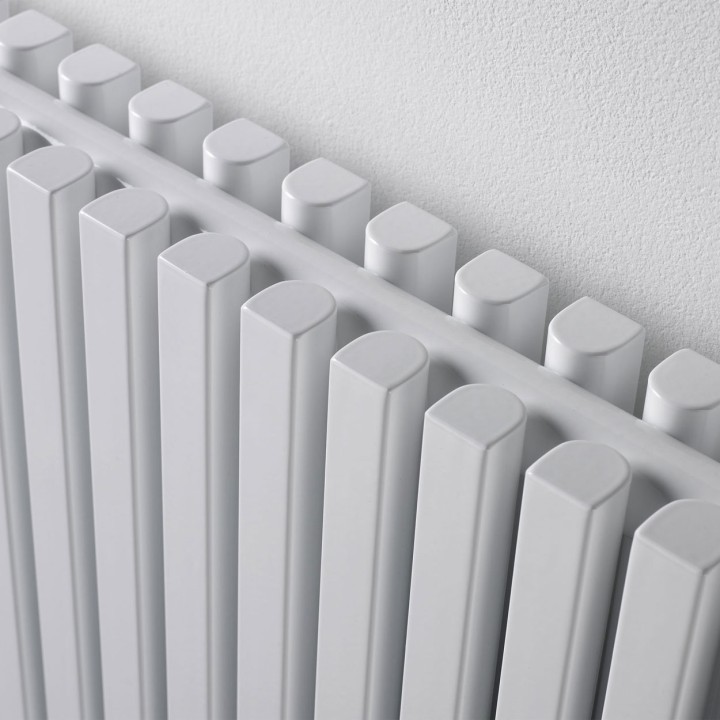

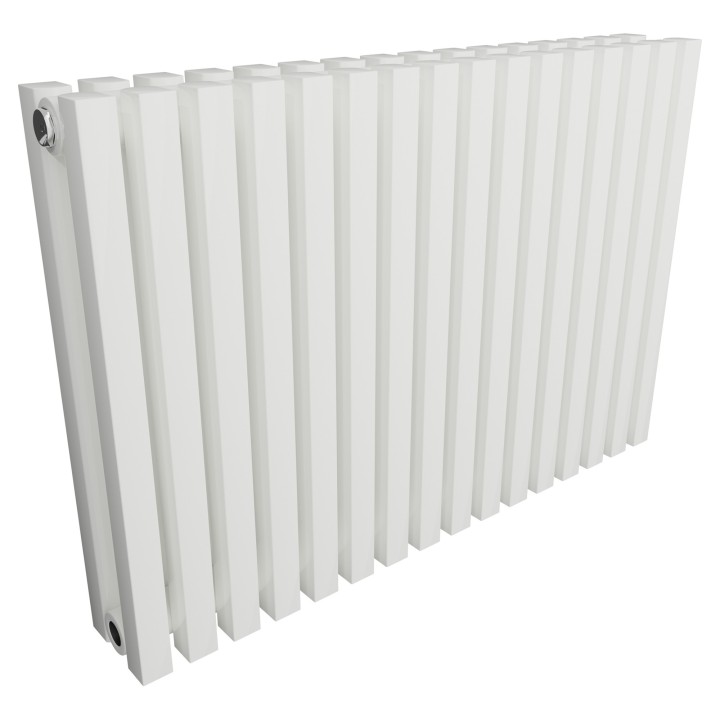

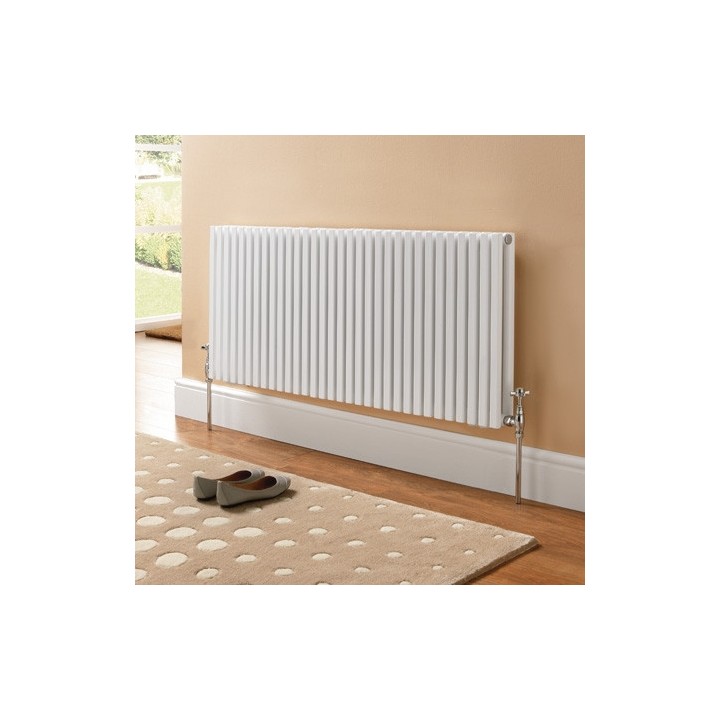

The Ultraheat KLON Radiator is a contemporary design with a D - Shaped profile double tubes (25mm x 25mm) available in a gloss white finish combining aesthetics and performance.

Size
£218.00
VAT included
5% Checkout Discount on 3 or more Ultraheat Radiators or Towel Rails
local_shipping Order now for FREE delivery between Wednesday, 1st June - Thursday, 2nd June

Data sheet

Height (mm)
420mm, 600mm
Width (mm)
535mm, 611mm, 839mm, 1067mm, 1219mm, 1371mm, 1599mm
Depth (mm)
87mm
Outer Finish
White Powder Coating
Material
Mild Steel
Design
Klon
Output BTUs
3046, 3200, 3657, 4190, 5030, 5338, 6099, 6407, 6864, 7322, 8237, 9610
Output Watts
892, 937, 1071, 1227, 1473, 1563, 1786, 1876, 2010, 2144, 2412, 2814
Tube Diameter (mm)
25mm x 25mm D-Profile Sections
Tube Bar Pattern
14, 16, 22, 28, 32, 36 or 42 - All x2 as Double Vertical Sections (See Widths)
Fixing Kit
Four Point Fixing Kit
Accessories
Supplied with Wall Brackets, Bleed Valve & Blank Plug
Guarantee
5 Years
Projection
109mm
Pipe Centres
Width Plus Valve Widths
Socket Width
1/2" BSP
Fuel Type
Central Heating
Brand
Ultraheat Ultraheat

Downloads

straighten Technical Drawing

The Ultraheat KLON Radiator is a contemporary design with a D - Shaped profile double tubes (25mm x 25mm) available in a gloss white finish combining aesthetics and performance.

NOTE: Due to the weight of the Klon radiators we recommend you install them onto solid walls.

RAL 9016 Max Working Pressure: 10 Bar 5 Year Guarantee
Product Code Height Width Depth Pipe Centers Wall to Face BTU's Watt's
KD416W 420 611 87 701 109 3046 892
KD422W 420 839 87 929 109 4190 1227
KD428W 420 1067 87 1157 109 5338 1563
KD432W 420 1219 87 1309 109 6099 1786
KD436W 420 1371 87 1461 109 6864 2010
KD614W 600 535 87 625 109 3200 937
KD616W 600 611 87 701 109 3657 1071
KD622W 600 839 87 929 109 5030 1473
KD628W 600 1067 87 1157 109 6407 1876
KD632W 600 1219 87 1309 109 7322 2144
KD636W 600 1371 87 1461 109 8237 2412
KD642W 600 1599 87 1689 109 9610 2814
  • Vertical columns (Double D-Profile Sections)
  • A choice of 12 models to suit your needs from 3046 BTU (892 Watts) up to 9610 BTU (2814 Watts)
  • High quality white powder coat finish (RAL 9010)
  • 5 year warranty
  • Built to last: 1.5mm thick mild steel for guaranteed quality
  • Tested to BS EN 442 Standards
  • ISO9001:2008 Registered Manufacturer
  • CE Marked

This is just a guide for reference only, rooms may require more than one radiator. If this applies to you, divide the required output between the number of radiators required. All figures given are for Delta T 50°
