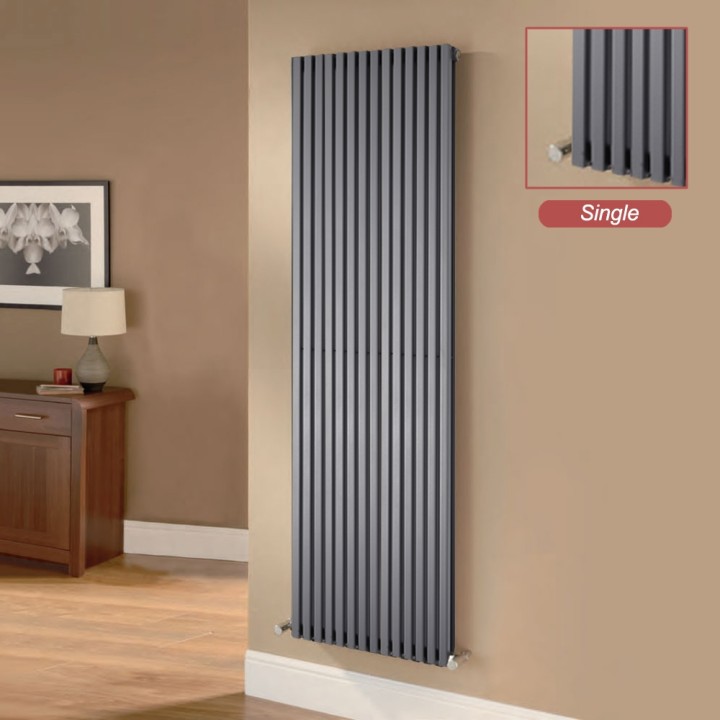

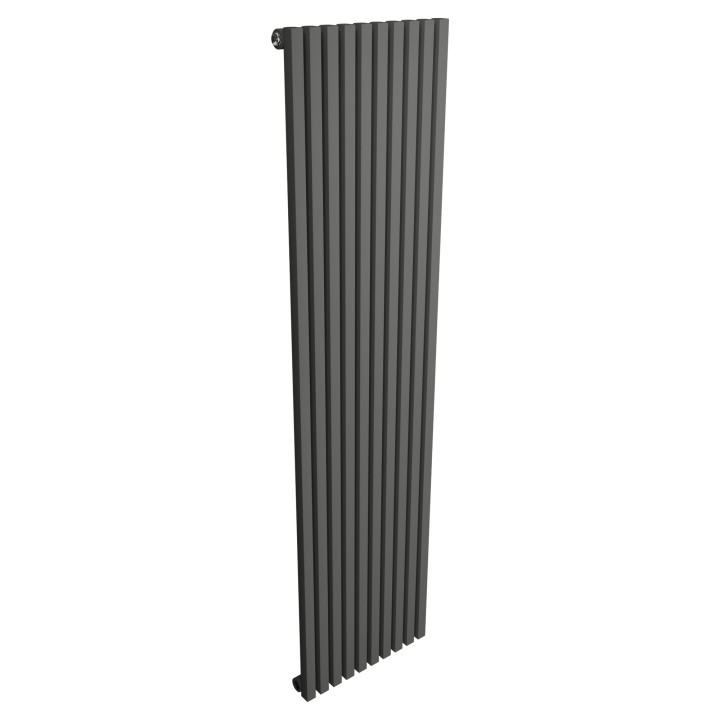

Ultraheat "Klon" Designer Anthracite Single & Double, D-Profile Vertical Radiators (7 Sizes)
NWT1974-38391
The Ultraheat KLON Radiator is a contemporary design with a D - Shaped profile double tubes (25mm x 25mm) available in an anthracite finish combining aesthetics and performance.
local_shipping
If you order before 2pm your order will be delivered FREE between Thursday, 7th November - Friday, 8th November
Data sheet
- Outer Finish
- Anthracite Powder Coating
- Height (mm)
- 1500mm, 1800mm
- Width (mm)
- 231mm, 383mm, 535mm, 611mm
- Depth (mm)
- 61mm (Singles), 87mm (Doubles)
- Design
- Klon
- Colour Family
- Grey
- Material
- Mild Steel
- Output BTUs
- 2937, 3483, 3719, 4798, 5573, 6198, 8678
- Output Watts
- 861, 1021, 1090, 1406, 1633, 1816, 2543
- Tube Diameter (mm)
- 25mm x 25mm D-Profile Sections
- Tube Bar Pattern
- 6, 10, 14 or 16 Vertical Sections (x2 for Double Models) - See Widths
- Fixing Kit
- Four Point Fixing Kit
- Accessories
- Supplied with Wall Brackets, Bleed Valve & Blank Plug
- Guarantee
- 5 Years
- Projection
- 88mm (Singles), 109mm (Doubles)
- Pipe Centres
- Underside: 50mm OR Side: Width Plus Valves
- Socket Width
- 1/2" BSP
- Fuel Type
- Central Heating
- Brand
- Ultraheat
The Ultraheat KLON Radiator is a contemporary design with a D - Shaped profile double tubes (25mm x 25mm) available in in an anthracite finish combining aesthetics and performance.
NOTE: Due to the weight of the Klon radiators we recommend you install them onto solid walls.
Max Working Pressure: 10 Bar | 5 Year Guarantee | ||||||
Product Code | Height | Width | Depth | Pipe Centers | Wall to Face | BTU's | Watt's |
KS1510A | 1500 | 383 | 61 | 50 - 473 | 88 | 2937 | 860 |
KS1810A | 1800 | 383 | 61 | 50 - 549 | 88 | 3483 | 1020 |
KS1816A | 1800 | 611 | 61 | 50 - 701 | 88 | 5573 | 1632 |
KD1510A | 1500 | 383 | 87 | 50 - 473 | 109 | 4798 | 1405 |
KD1806A | 1800 | 231 | 87 | 50 - 321 | 109 | 3719 | 1089 |
KD1810A | 1800 | 383 | 87 | 50 - 473 | 109 | 6198 | 1815 |
KD1814A | 1800 | 535 | 87 | 50 - 625 | 109 | 8678 | 2541 |
- Vertical columns (Single OR Double D-Profile Sections)
- A choice of 7 models to suit your needs from 2937 BTU (860 Watts) up to 8678 BTU (2541 Watts)
- High quality anthracite finish
- 5 year warranty
- Built to last: 1.5mm thick mild steel for guaranteed quality
- Tested to BS EN 442 Standards
- ISO9001:2008 Registered Manufacturer
- CE Marked
Radiator Valves
Others in range
This is just a guide for reference only, rooms may require more than one radiator. If this applies to you, divide the required output between the number of radiators required. All figures given are for Delta T 50°
