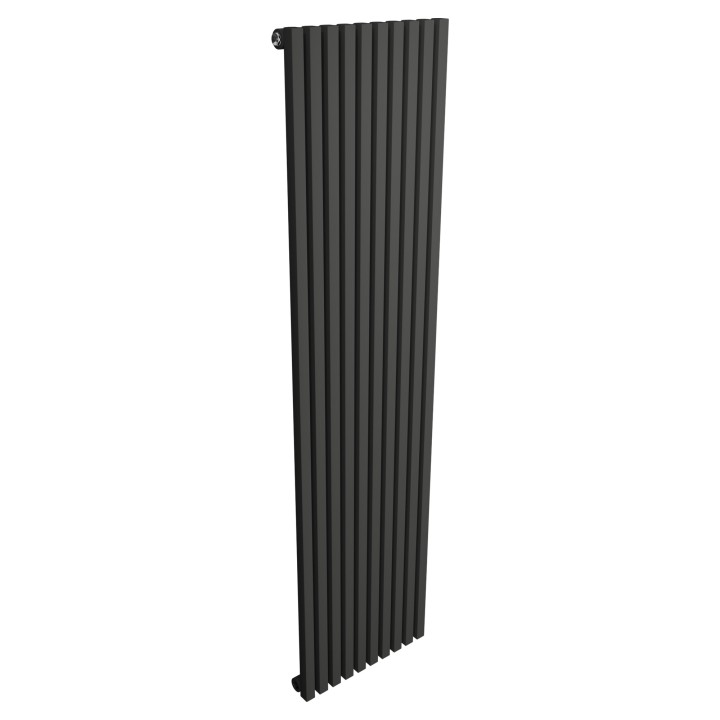

Name: Ultraheat Klon Black D-Profile Single Vertical Radiator - 383mm (w) x 1500mm (h)
Brand: Ultraheat
SKU: NWT3213-43325
Price: 189 GBP
Availability: InStock

The Ultraheat KLON Radiator is a contemporary design with a D - Shaped profile double tubes (25mm x 25mm) available in a micro grain metallic black finish combining aesthetics and performance.

Size

Selected: 383mm (w) x 1500mm (h) Single

231mm (w) x 1800mm (h) Double - 3719 BTU's £215.00

383mm (w) x 1500mm (h) Single - 2937 BTU's £189.00

383mm (w) x 1500mm (h) Double - 4798 BTU's £296.00

383mm (w) x 1800mm (h) Single - 3483 BTU's £207.00

383mm (w) x 1800mm (h) Double - 6198 BTU's £344.00

535mm (w) x 1800mm (h) Double - 8678 BTU's £464.00

611mm (w) x 1800mm (h) Single - 5573 BTU's £309.00

£189.00

VAT included

In stock

Ready to dispatch

Secure checkout

VAT included

Easy returns

local_shipping

Free Delivery

Order Now arrow_right_altDelivered between Tuesday, 20th October - Wednesday, 21st October

Description

The Ultraheat KLON Radiator is a contemporary design with a D - Shaped profile double tubes (25mm x 25mm) available in a micro grain metallic black finish combining aesthetics and performance.

NOTE: Due to the weight of the Klon radiators we recommend you install them onto solid walls.

				Max Working Pressure: 10 Bar		5 Year Guarantee
Product Code	Height	Width	Depth	Pipe Centers	Wall to Face	BTU's	Watt's
KS1510B	1500	383	61	50 - 473	88	2937	860
KS1810B	1800	383	61	50 - 473	88	3483	1020
KS1816B	1800	611	61	50 - 701	88	5573	1632
KD1510B	1500	383	87	50 - 473	109	4798	1405
KD1806B	1800	231	87	50 - 321	109	3719	1089
KD1810B	1800	383	87	50 - 473	109	6198	1815
KD1814B	1800	535	87	50 - 625	109	8678	2541

Vertical columns (Single OR Double D-Profile Sections)
A choice of 7 models to suit your needs from 2937 BTU (860 Watts) up to 8678 BTU (2541 Watts)
High quality micrograin metallic black finish
5 year warranty
Built to last: 1.5mm thick mild steel for guaranteed quality
Tested to BS EN 442 Standards
ISO9001:2008 Registered Manufacturer
CE Marked

Product Specifications

Everything you need to know about this product, from dimensions and installation to finish and performance.

Dimensions

Width (mm) 383mm

Height (mm) 1500mm

Depth (mm)

Projection 88mm

Pipe Centres 50mm Underside or 473mm Side Entry

Tube Diameter (mm) 25mm x 25mm D-Profile Sections

Socket Width 1/2" BSP

Technical Specifications

Output BTUs 2937

Output Watts 860

Fuel Type Central Heating

Materials & Construction

Material Mild Steel

Design & Appearance

Design Klon

Outer Finish Black Powder Coating

Colour Family Black

Tube Bar Pattern 10 Vertical Sections

Fixtures & Fittings

Fixing Kit Four Point Fixing Kit

Accessories Supplied with Wall Brackets, Bleed Valve & Blank Plug

Certifications & Standards

Guarantee 5 Years

Brand & Product Codes

Manufacturer

Ultraheat

Quick Code NWT3213-43325

Files & Downloads

Installation guides, technical sheets and supporting product documents.

picture_as_pdf

Product Datasheet

Technical

PDF

arrow_downward

You May Need

Below are some products that are suitable for your purchase. You may need to add these to your order.

doneIn Stock

Angled Black Valves for Radiators & Towel Rails (Pair)

£25.50 -£4.00

From: £229.00

Add to cart

doneIn Stock

Ultraheat Klon Designer Chrome Single, D-Profile Vertical Radiators (7 Sizes)

From: £261.00

Add to cart

Reviews

Questions & Answers

Btu Calculator

This is a guide for reference only. Rooms may require more than one radiator. If this applies to you, divide the required output between the number of radiators required. All figures given are for Delta T 50°.

Meters Feet

Length

Width

Height

Room Type

Wall Type

Window Type

Below the Room

Above the Room

Number of Outside Walls

BTUs Required

Watts Required
